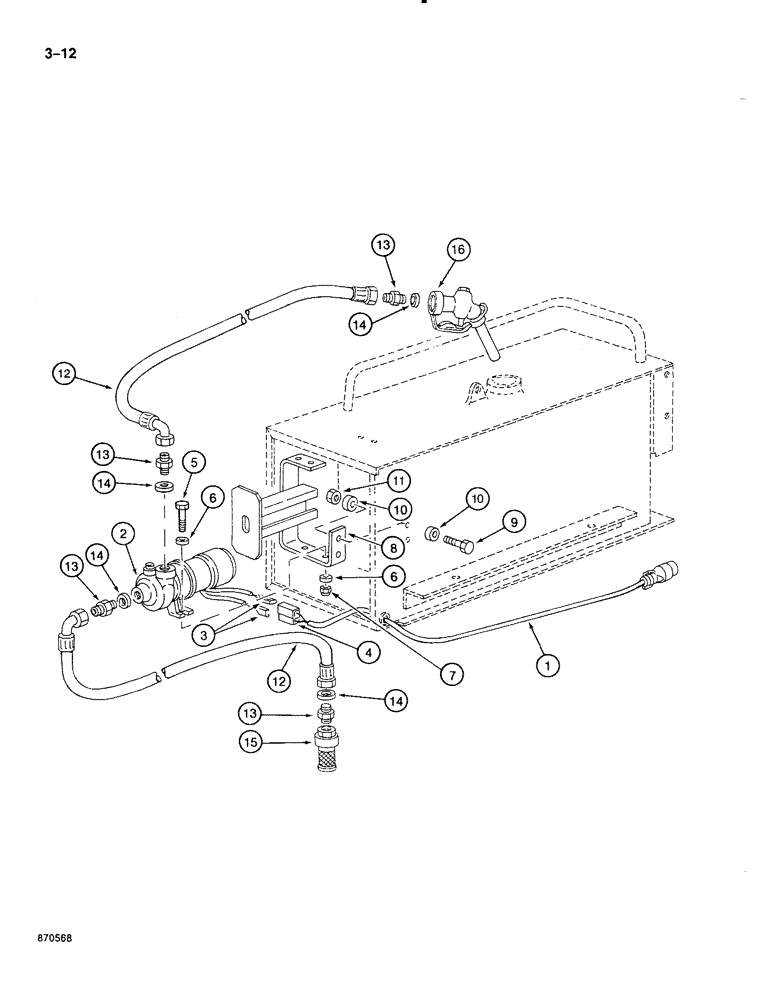

Запчасти Case 888 (3-012) - FUEL TRANSFER PUMP (03) - FUEL SYSTEM

1

P352272

HARNESS

AND PLUG - fuel transfer pump (Replaces P9547239)

1шт.

2

P2843569

PUMP

ASSEMBLY - fuel transfer

1шт.

3

P640945

CLIP,ELECTRICAL

CLIP - wire, Serial Range: pump-connector

2шт.

4

P440714

CASE

CONNECTOR - harness, 2 clip

1шт.

5

P233830

SCREW

BOLT - hex, 8 mm x 40 mm

2шт.

6

P3528794

WASHER

SPACER - bolt, 6 mm thick

4шт.

7

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

2шт.

8

P6328255

SUPPORT

BRACKET - pump mounting

1шт.

9

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

4шт.

10

P3528795

WASHER

SPACER - bolt, 7 mm thick

8шт.

11

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

12

P4431918

HOSE

- 78-3/4" long, tank to pump and, Serial Range: pump-nozzle

2шт.

13

P4037547

UNION

ADAPTER - straight

4шт.

14

P1245217

WASHER, SEALING

WASHER - seal, adapter

4шт.

15

P7646253

VALVE POPPET

FILTER - suction, fuel hose

1шт.

16

P7646252

HANDLE

NOZZLE - fuel hose

1шт.
