Запчасти Case 888 (2-048) - CRANKSHAFT, 6T-590 DIESEL ENGINE (02) - ENGINE

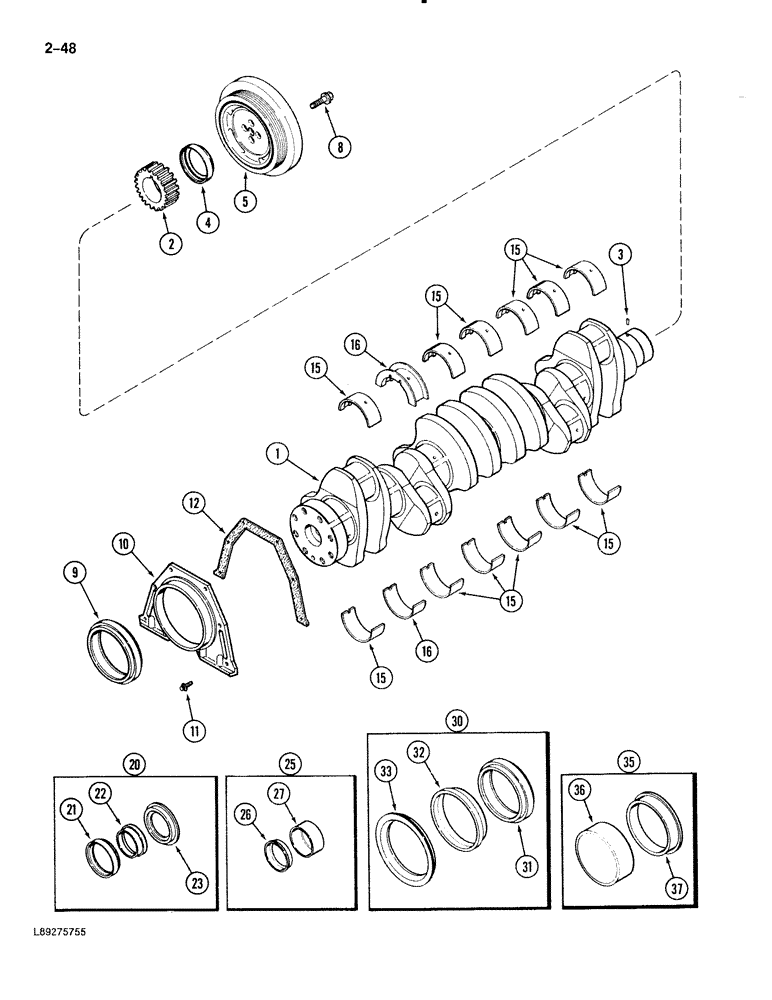

Схема запчастей Case 888 - (2-048) - CRANKSHAFT, 6T-590 DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

JR908032

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - engine remanufactured (North America only)

1шт.

JR918324

CRANKCASE

CRANKSHAFT ASSEMBLY - engine remanufactured (North America only)

1шт.

JC908032

CORE-CRANKSHAFT

RETURN NUMBER - crankshaft (use this number to return crankshaft for credit)

1шт.

1

J918324

CRANKSHAFT

ASSEMBLY - engine new, Includes: Ref. 2 and 3

1шт.

2

J912883

PINION

GEAR - crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front (Order Ref 20)

1шт.

5

J914454

DAMPER

PULLEY - vibration dampener

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange, 12 mm x 36 mm

4шт.

9

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (Order Ref 30)

1шт.

10

J913447

SEAL RETAINER

RETAINER - rear seal

1шт.

11

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

12

J914386

GASKET

- seal retainer (Replaces J901019)

1шт.

15

A77405

CRANKSHAFT BEARING

BEARING KIT - main, (set) upper and lower, standard

6шт.

15

A77472

BEARING SET

BEARING KIT - main, (set) upper and lower, 0.25 mm undersize

6шт.

15

A77474

BEARING SET

BEARING KIT - main, (set) upper and lower, 0.5 mm undersize

6шт.

15

A77476

BEARING SET

BEARING KIT - main, (set) upper and lower, 0.75 mm undersize

6шт.

15

A77478

BEARING SET

BEARING KIT - main, (set) upper and lower, 1.0 mm undersize

6шт.

16

A77406

CRANKSHAFT BEARING

BEARING KIT - main thrust, upper and lower, standard

1шт.

16

A77473

THRUST BEARING

BEARING KIT - main thrust, upper and lower, 0.25 mm undersize

1шт.

16

A77475

THRUST BEARING

BEARING KIT - main thrust, upper and lower, 0.5 mm undersize

1шт.

16

A77477

THRUST BEARING

BEARING KIT - main thrust, upper and lower, 0.75 mm undersize

1шт.

16

A77479

THRUST BEARING

BEARING KIT - main thrust, upper and lower, 1.0 mm undersize

1шт.

20

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J906080

PACKAGE, REPAIR

WEAR SLEEVE KIT - crankshaft front, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J909410

GASKET KIT

SEAL KIT - oil, crankshaft rear, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J906081

SLEEVE

WEAR SLEEVE KIT - crankshaft rear, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

Выбрано товаров: 37
