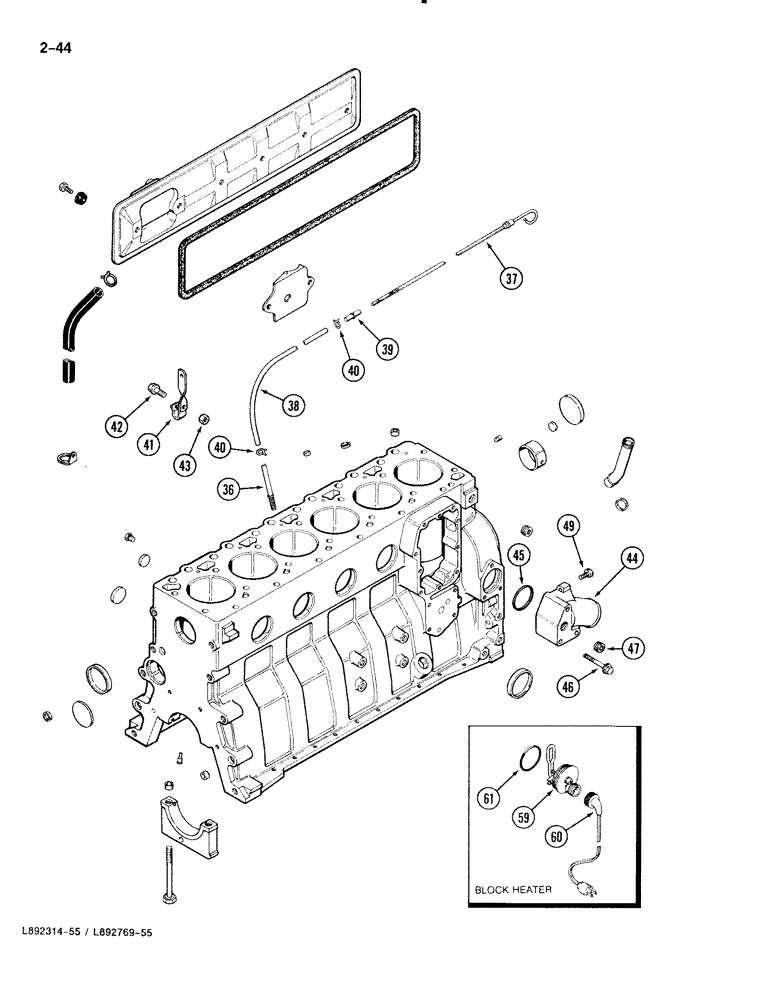

Запчасти Case 888 (2-044) - CYLINDER BLOCK, 6T-590 DIESEL BLOCK, BLOCK HEATER (02) - ENGINE

36

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick

1шт.

37

J907712

DIPSTICK

- engine oil

1шт.

38

J918384

TUBE

- dipstick flex (Replaces J905799)

1шт.

39

J918384

TUBE

END - oil dipstick tube (Replaces J905802)

1шт.

40

J918384

TUBE

CLAMP - hose (Oil dipstick tube) (Replaces 214-103)

2шт.

41

J905804

BRACKET

BRACE - tube

1шт.

42

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm

1шт.

43

J900240

NUT

- hex, 8 mm

1шт.

44

J903103

MANIFOLD

CONNECTION - water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

46

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 75 mm, Grade 10.9

3шт.

47

A77429

PLUG

- hex socket pipe, 1/2-14 inch PT

1шт.

49

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

1шт.

A77634

KIT

HEATER KIT - engine block, Includes: Ref. 59 - 60

1шт.

59

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77634), block

1шт.

60

J905113

CABLE

- engine block heater

1шт.

61

J910517

O-RING

- heater sealing, block

1шт.
