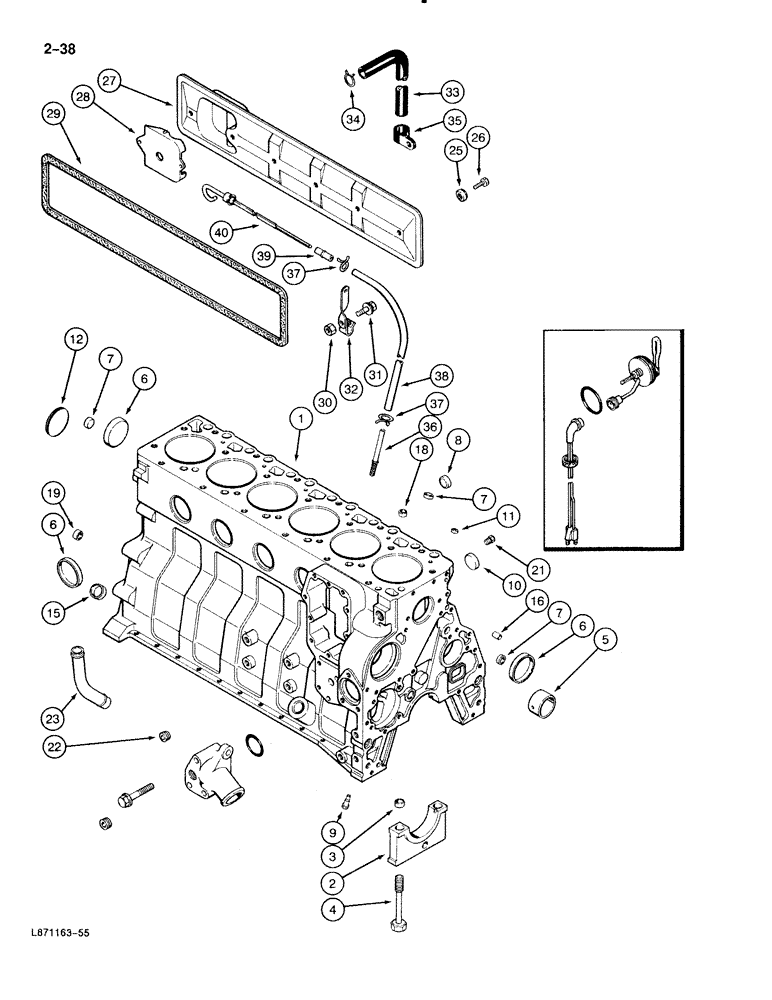

Запчасти Case 888 (2-038) - CYLINDER BLOCK, 6T-590 DIESEL ENGINE (02) - ENGINE

J905812

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine new (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Also order J905813 kit), Includes: Ref. 2 - 8

1шт.

JR905812

ENGINE, EXCHANGE

Block Assembly, Engine Short, Remanufactured, Includes: Ref. 2 - 8

1шт.

JC905812

CORE-ENGINE

Return Part Number, Engine Short Block (Use This Part Number To Return Block Core For Credit, Includes: Ref. 2 - 8

1шт.

JR933182

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933182

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Also order J905813 kit)

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

- bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See figure 2-36)

1шт.

6

J900965

PLUG

- expansion, 58 mm OD

6шт.

7

J900956

PLUG

- expansion, 18 mm OD

3шт.

8

A77539

PLUG

- expansion, 26 mm

4шт.

J905813

PACKAGE, REPAIR

KIT - block hardware, Includes: Ref. 9 - 22

1шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

- expansion, 32 mm OD

1шт.

11

J900955

PLUG

- expansion, 10 mm OD

2шт.

12

J900687

PLUG

- expansion, (Welch) 60 mm OD

1шт.

15

A77439

PLUG

- expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

2шт.

22

A77429

PLUG

- hex socket, 1/2-14 inch PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

25

J900267

SEAL

ASSEMBLY - cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm (Replaces J900629)

4шт.

27

J904672

COVER

- tappet

1шт.

28

J907586

BAFFLE

- tappet cover

1шт.

29

J904776

GASKET

- tappet cover

1шт.

33

J906593

HOSE

Breather

1шт.

34

J904230

CLAMP,25.4mm

- spring, hose

1шт.

35

A77531

CLIP

- retaining

1шт.

36

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick

1шт.

37

214-103

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose (Oil dipstick tube)

2шт.

38

J905799

TUBE,9.5 mm ID x 12.7 mm OD x 533.4 mm L

- dipstick flex

1шт.

39

J905802

FITTING,9.53 mm OD x 39 mm L

END - oil dipstick tube

1шт.

40

J907712

DIPSTICK

- engine oil

1шт.
