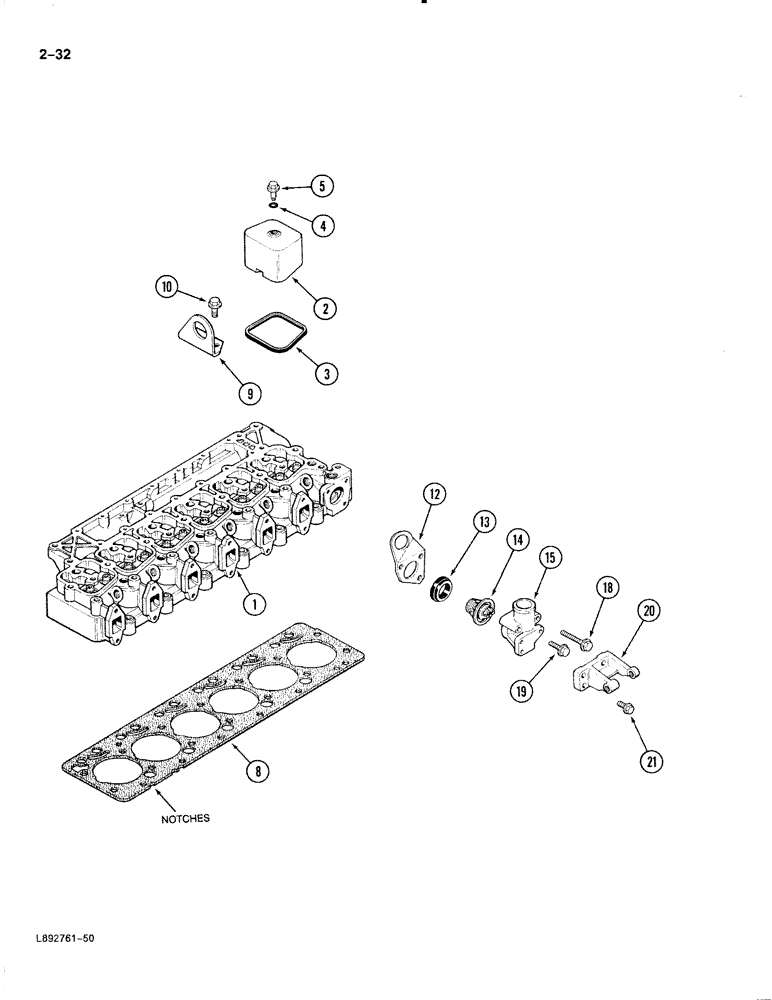

Запчасти Case 888 (2-032) - CYLINDER HEADCOVER, 6T-590 DIESEL ENGINE, THERMOSTAT AND HOUSING (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder (See figure 2-34)

1шт.

2

J902604

COVER

- rocker

6шт.

3

J902666

GASKET

SEAL - rocker cover

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- sealing (Replaces J901837)

6шт.

5

J907049

BOLT,Hex

- special, 8 mm - 1.25 x 21 mm)

6шт.

8

J917358

GASKET

- head standard (1 notch) (Replaces J907057)

1шт.

8

J917359

GASKET

- head, 0.23 mm thicker (2 notches) (Replaces J907058)

1шт.

8

J917360

GASKET

- head, 0.51 mm thicker (3 notches) (Replaces J907059)

1шт.

9

J908118

BRACKET

- lifting, rear

1шт.

10

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex, 12 mm - 1.75 x 25 mm grade 10.9) (Replaces 813-12025)

2шт.

12

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

13

J903301

GASKET

- housing, thermostat

1шт.

14

J917324

THERMOSTAT

- water, 95 degree C (Replaces J912587), housing

1шт.

15

J914409

HOUSING

- thermostat (Replaces J903756)

1шт.

18

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm (Replaces J903096), Thermostat and housing

2шт.

19

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 35 mm (Replaces J900632), Thermostat and housing

1шт.

20

J910713

SUPPORT

- alternator mounting, thermostat and housing

1шт.

21

613-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm x 25 mm, grade 10.9), thermostat and housing

3шт.
