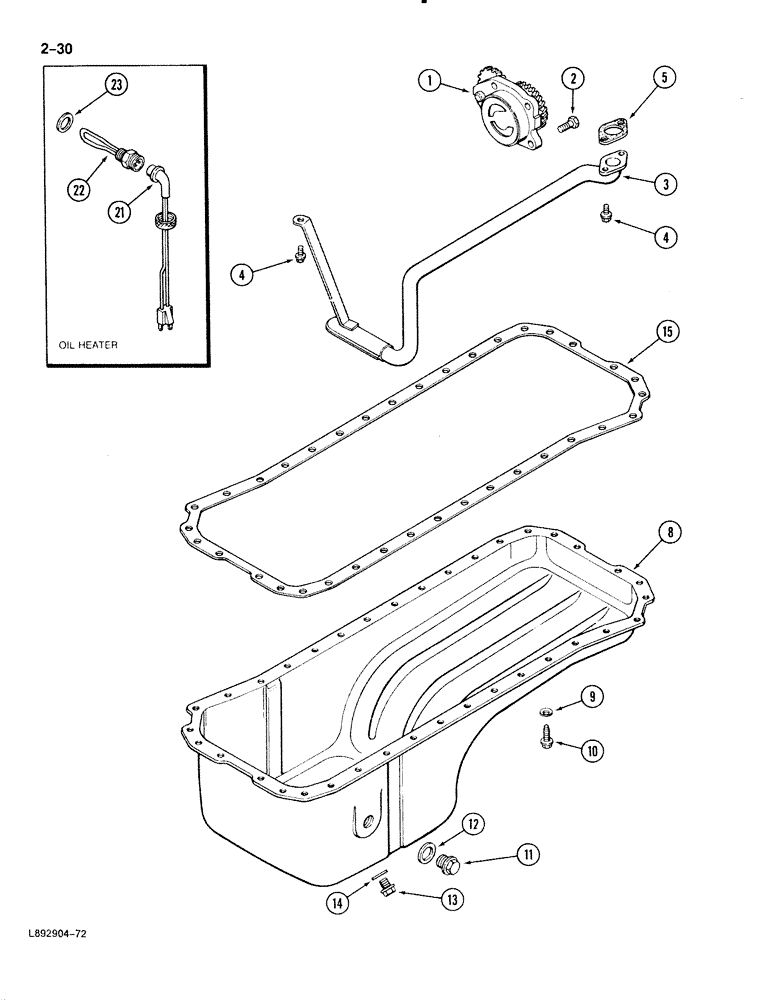

Запчасти Case 888 (2-030) - OIL PUMP AND OIL PAN, JR914006, ENGINE OIL HEATER (02) - ENGINE

JR914006

PUMP

ASSEMBLY - engine oil, remanufactured (North America only)

1шт.

JC914006

CORE-HYDRAULIC PUMP

RETURN NUMBER - oil pump (Use this part number to return pump core for credit)

1шт.

1

J914006

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine, new

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

J909374

TUBE

AND SCREEN - oil suction

1шт.

4

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm

3шт.

5

J914383

GASKET

- mounting, tube

1шт.

Part of oil pan gasket kit P/N A77676

1шт.

8

J915703

PAN, ENGINE OIL

PAN - oil, engine

1шт.

9

J907537

SPRING WASHER

- spring

36шт.

10

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, 18 x 16 mm

36шт.

11

J904386

PLUG

- pipe heater hole, 18 mm

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

13

J911638

PLUG,M18 x 1.5

- drain oil magnetic

1шт.

14

J900216

PACKING RING

WASHER - seal, drain plug

1шт.

Part of oil pan gasket kit P/N A77676

1шт.

15

NSS

NOT SOLD SEPARAT

GASKET - oil pan (order A77676)

1шт.

Part of oil pan gasket kit P/N A77676

1шт.

A77676

GASKET KIT

- oil pan, Includes: Ref. 5, 14 and 15

1шт.

A77490

KIT

- heater engine oil, Includes: Ref. 21 and 22

1шт.

21

J905113

CABLE

- engine block heater, oil

1шт.

22

NSS

NOT SOLD SEPARAT

ELEMENT - heater (order A77490), engine oil

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, engine oil heater

1шт.
