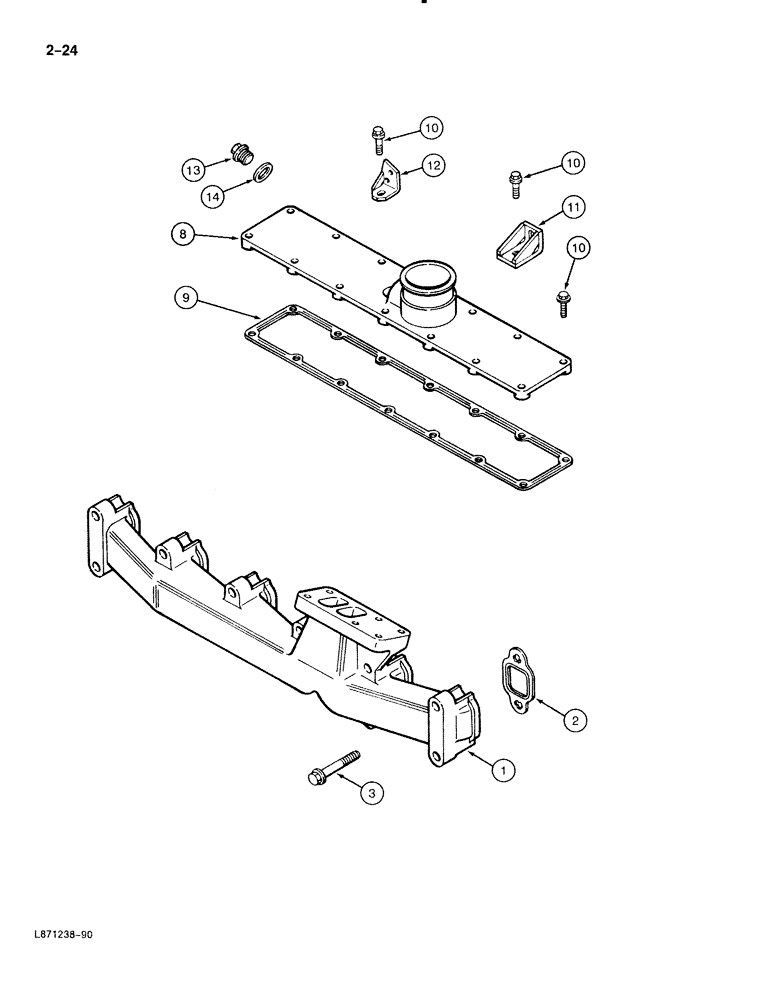

Запчасти Case 888 (2-024) - MANIFOLDS, EXHAUST, 6T-590 DIESEL ENGINE, INTAKE (02) - ENGINE

1

J901683

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- mounting, manifold

6шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 mm - 1.50 x 65 mm, Grade 10.9 (Replaces J904446)

12шт.

8

NSS

NOT SOLD SEPARAT

COVER - intake manifold (Order A77418 kit)

1шт.

9

J914029

GASKET

- intake cover (Replaces J907036)

1шт.

10

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold (Replaces J904341) Hex Flg Hd, M8 x 1.25 x 25

14шт.

11

REF

INSTRUCTION

BRACKET - fuel line (See figure 3-14), intake

2шт.

12

REF

INSTRUCTION

BRACKET - fuel line (See figure 3-14), intake

2шт.

13

J907185

PLUG

ASSEMBLY - manifold, intake

1шт.

14

J906773

WASHER

- sealing, plug, intake

1шт.

A77418

KIT

- intake manifold (Includes Ref. 8, 13, and 14)

1шт.
