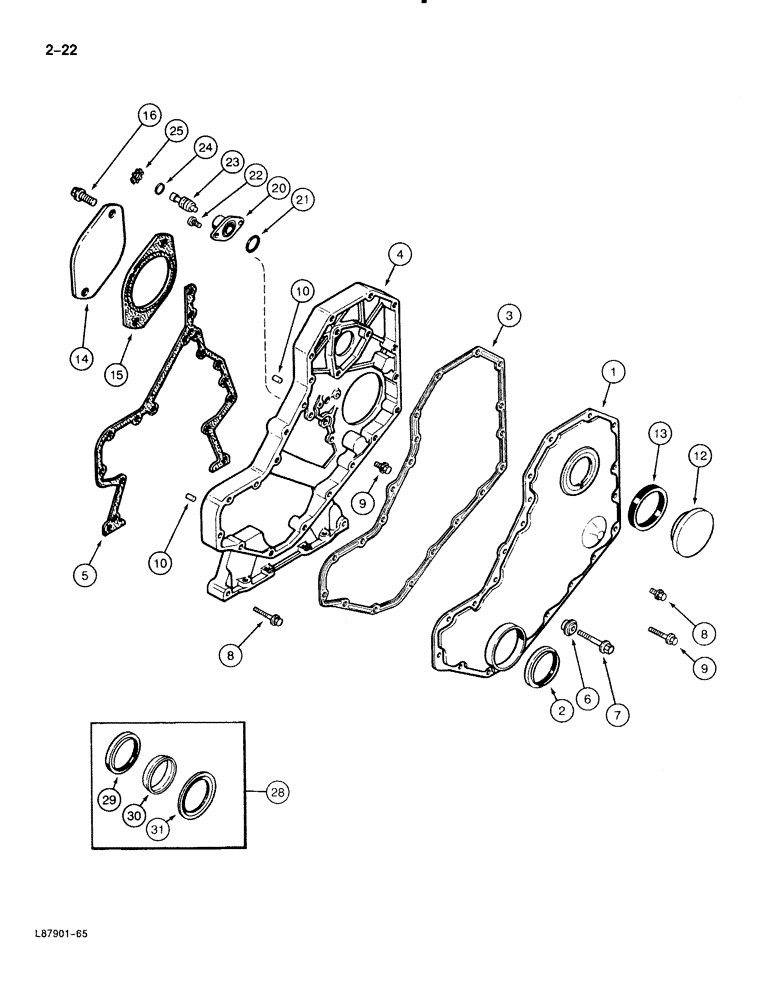

Запчасти Case 888 (2-022) - FRONT GEAR COVER, 6T-590 DIESEL ENGINE (02) - ENGINE

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order ref 28)

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover (Replaces J910500)

1шт.

4

J917759

HOUSING

- timing gear (Replaces J910411)

1шт.

5

J916131

GASKET

- housing to block (Replaces J907836)

1шт.

6

J912772

RETAINER

- bolt

1шт.

7

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- hex flange, 8 - 1.25 x 60 mm (Replaces J901446)

1шт.

8

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 50 mm (Replaces J900633)

10шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex, 8 mm - 1.25 x 16 mm (Replaces J900629)

16шт.

Ref. Item #9 845-8016- the proper bolt to use is J924962 (or J900629 bolt with Loctite)

1шт.

10

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

11

J903463

PLUG,M63 x 5

- tachometer drive hole

1шт.

13

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

14

J909918

PLATE

- cover, access

1шт.

15

J913192

GASKET

- cover plate (Replaces A77441)

1шт.

16

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex flange, 12 mm x 25 mm (Replaces J901249)

2шт.

20

J905933

HOUSING

- timing pin

1шт.

21

J914092

O-RING

GASKET - pin housing, o-ring (Replaces J905595)

1шт.

22

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

23

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

24

J913994

O-RING

- sealing, timing pin (Replaces J903927)

1шт.

25

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

28

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

30

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

31

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.
