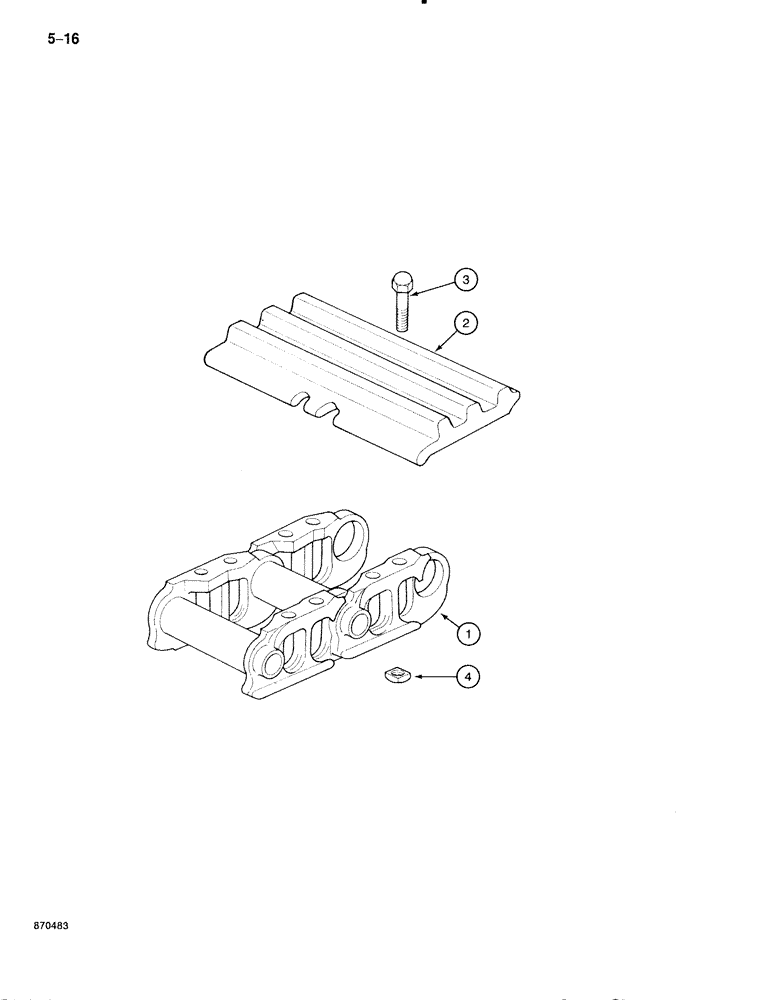

Запчасти Case 888 (5-016) - TRACK SHOES (11) - TRACKS/STEERING

1

REF

INSTRUCTION

CHAIN ASSEMBLY - track, see figure 5-14

2шт.

1

REF

INSTRUCTION

CHAIN ASSEMBLY - track, see figure 5-14

2шт.

2

P1642310

TRACK SHOE

- grouser, 24" long (Order P2042352, P3533058, and P2434593) (See SAT INFORMATIONS No. 58)

94шт.

2

P2042352

TRACK SHOE

- grouser, 24" long

94шт.

2

P1842318

TRACK SHOE

- grouser, 28" long (Order P2042353, P3533058, and P2434593) (See SAT INFORMATIONS No. 58)

94шт.

2

P2042353

TRACK SHOE

- grouser, 28" long

94шт.

3

P33041

SCREW

BOLT - track shoe, special

376шт.

3

P3533059

SCREW

BOLT - track shoe, special (Replaces P3533058)

376шт.

4

P134514

NUT

- track shoe, special

376шт.

4

P2434592

NUT

- track shoe, special (Replaces P2434593)

376шт.
