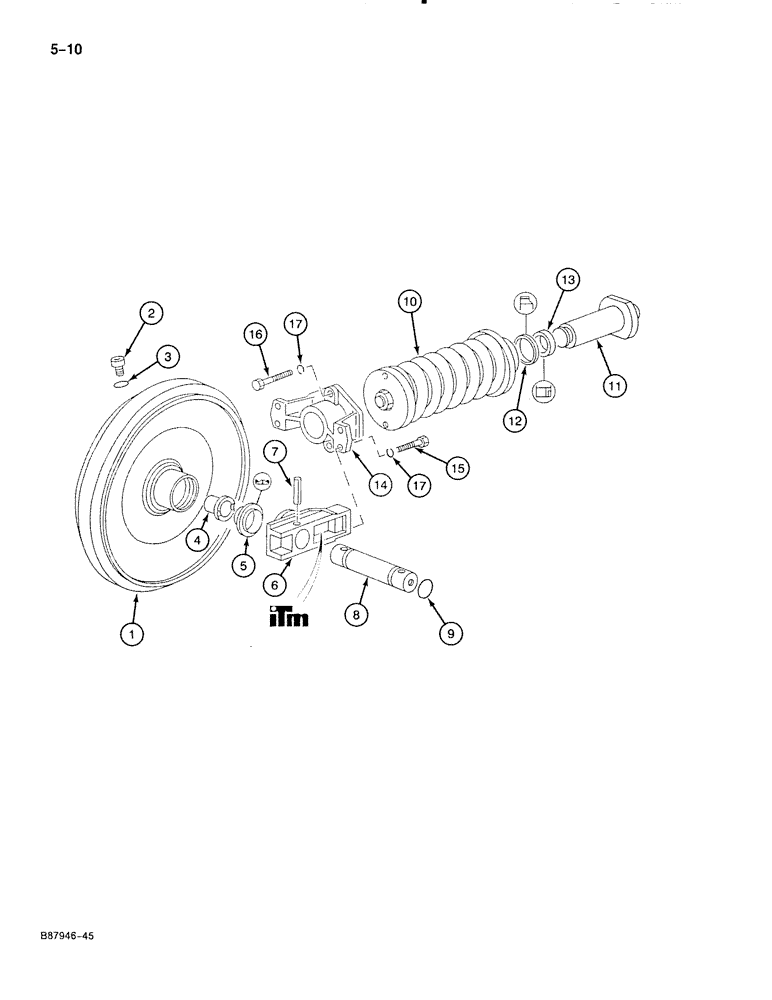

Запчасти Case 888 (5-010) - TRACK FRAME AND UNDERCARRIAGE, I T M IDENTIFICATION (11) - TRACKS/STEERING

P1642335

FRONT IDLER

IDLER ASSEMBLY - track, Includes: Ref. 1 - 9

2шт.

1

NSS

NOT SOLD SEPARAT

WHEEL - idler

1шт.

2

P737448

PLUG

- filler, idler wheel

1шт.

3

P2230408

O-RING

- filler plug

1шт.

4

P1528658

BUSHING

- idler wheel

2шт.

5

P1046032

SET OF GASKET

SEAL ASSEMBLY - oil, idler wheel

2шт.

6

P4228249

SUPPORT

BRACKET - idler wheel

2шт.

7

P35920

PIN, ROLL

ROLL PIN - idler, Serial Range: shaft-bracket

2шт.

8

P5327826

SHAFT

- idler wheel

1шт.

9

P2230407

O-RING

- idler shaft

2шт.

P7946218

SHOCK ABSORBER

SPRING AND CYLINDER TUBE ASSEMBLY - track adjustment, Includes: Ref. 10 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

SPRING AND CYLINDER TUBE - track adjustment

1шт.

11

P7946220

PISTON

- adjustment cylinder

1шт.

12

P3946055

SEAL

- piston, inner

1шт.

13

P151234

WIPER SEAL

SEAL - piston, outer

1шт.

14

P7946219

SHIN

BRACKET - spring and cylinder tube mounting

2шт.

15

P133802

SCREW

BOLT - hex 16 mm x 40 mm

8шт.

16

P33854

SCREW

BOLT - hex 16 mm x 50 mm

4шт.

17

P34715

WASHER, LOCK

WASHER - lock, 16 mm

12шт.
