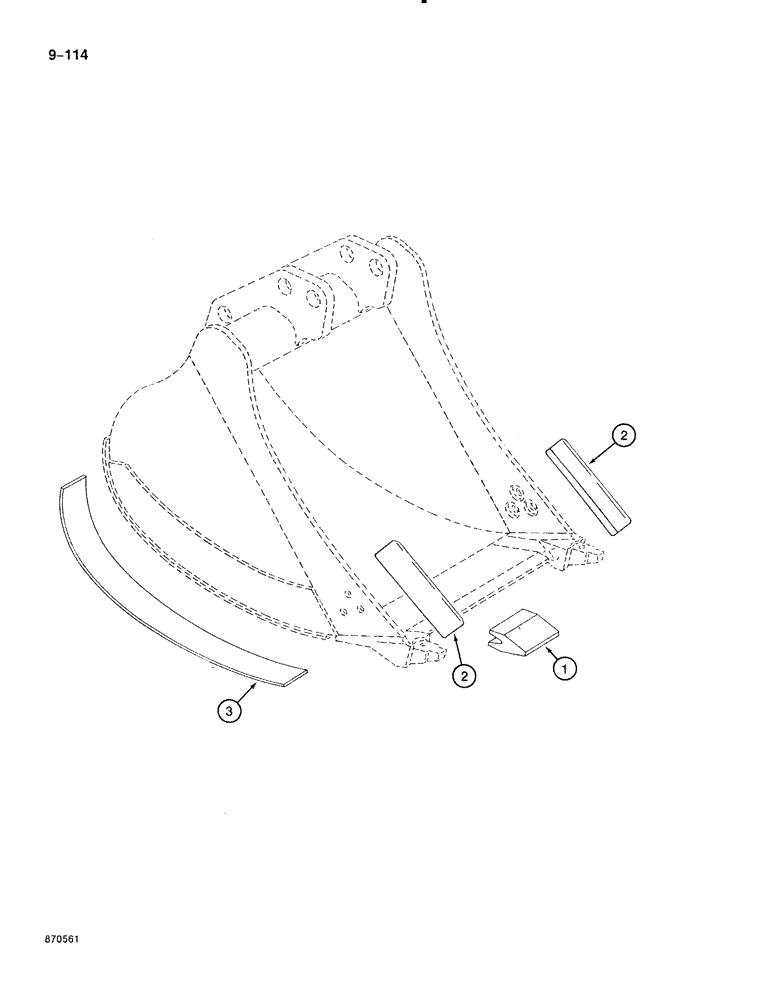

Запчасти Case 888 (9-114) - BUCKT REINFRCMT PARTS,BCKHOE BUCKTS,23-5/8" WD,29-1/2" ,33-1/2" & 35-1/2" ,39-3/8" ,47-1/8" ,51-1/8" (09) - CHASSIS

1

P2346175

PLATE

REINFORCEMENT - cutting edge

2шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge

2шт.

3

P5826696

STIFFENER

REINFORCEMENT - bucket bottom

2шт.

1

P2346174

BLADE

REINFORCEMENT - cutting edge, backhoe bucket, 29-1/2" wide

3шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket, 29-1/2" wide

2шт.

3

P5826696

STIFFENER

REINFORCEMENT - bucket bottom, backhoe, 29-1/2" wide

2шт.

1

P2346175

PLATE

REINFORCEMENT - cutting edge, backhoe bucket, 33-1/2" & 35-1/2" wide

3шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket, 33-1/2" & 35-1/2" wide

2шт.

3

P5826696

STIFFENER

REINFORCEMENT - bucket bottom, backhoe, 33-1/2" & 35-1/2" wide

2шт.

1

P2346176

PLATE

REINFORCEMENT - cutting edge, backhoe bucket, 39-3/8" wide

3шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket, 39-3/8" wide

2шт.

3

P5826696

STIFFENER

REINFORCEMENT - bucket bottom, backhoe, 39-3/8" wide

2шт.

1

P2346175

PLATE

REINFORCEMENT - cutting edge, backhoe bucket, 47-1/8" wide

4шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket, 47-1/8" wide

2шт.

3

P5826696

STIFFENER

REINFORCEMENT - bucket bottom, backhoe, 47-1/8" wide

2шт.

1

P2346176

PLATE

REINFORCEMENT - cutting edge, backhoe bucket, 51-1/8" wide

4шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket, 51-1/8" wide

2шт.

3

P5826696

STIFFENER

REINFORCEMENT - bucket bottom, backhoe, 51-1/8" wide

4шт.
