Запчасти Case 888 (9-112) - BUCKET TEETH AND SIDE CUTTING EDGES (09) - CHASSIS

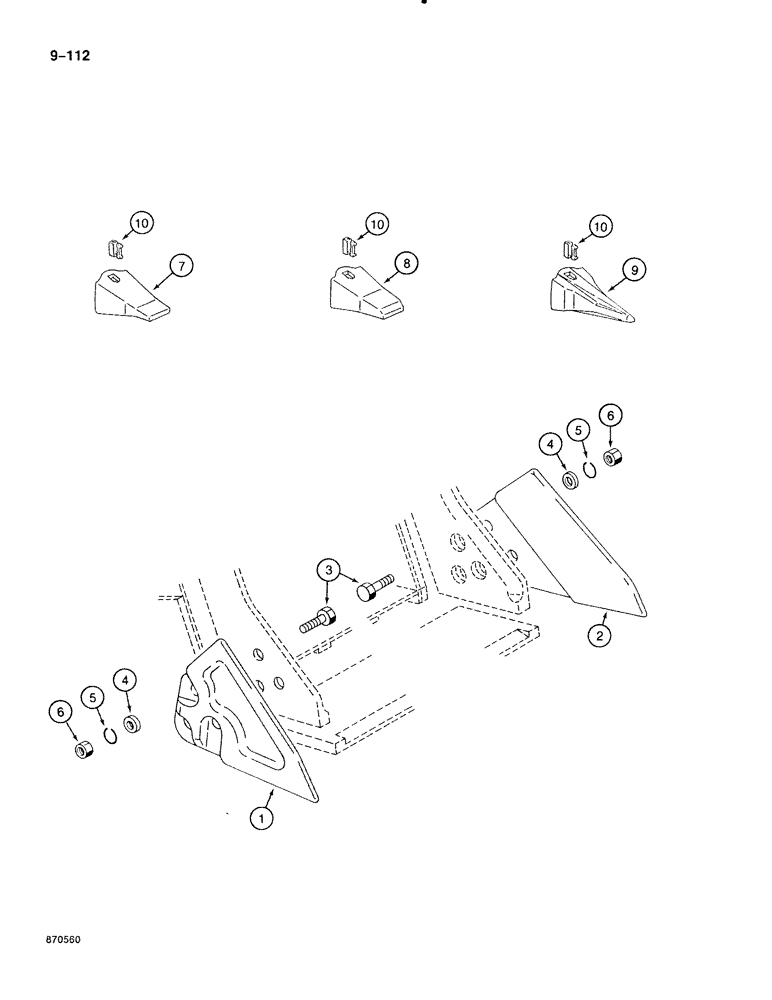

Схема запчастей Case 888 - (9-112) - BUCKET TEETH AND SIDE CUTTING EDGES (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

P1304030

BLADE

CUTTING EDGE - side, left-hand

1шт.

2

P1304031

BLADE

CUTTING EDGE - side, right-hand

1шт.

3

P133834

SCREW

BOLT - hex, 20 mm x 50 mm

6шт.

4

P35008

WASHER

- flat, 20 mm

6шт.

5

P34717

WASHER, LOCK

WASHER - lock, 20 mm

6шт.

6

P34171

NUT

- hex, 20 mm

6шт.

7

P604281

POINT

TOOTH - bucket, standard

1шт.

8

P604285

POINT

TOOTH - bucket, rock

1шт.

9

P604283

POINT

TOOTH - bucket, spur type

1шт.

10

P1236120

BUCKET TOOTH KEY

RETAINER - lock, Serial Range: tooth-shank

1шт.

P120601

BUCKET TOOTH KEY

new

1шт.

Выбрано товаров: 11
