Запчасти Case 888 (9-106) - BACKHOE BUCKET, BACKHOE BUCKET - 39-3/8" WIDE (09) - CHASSIS

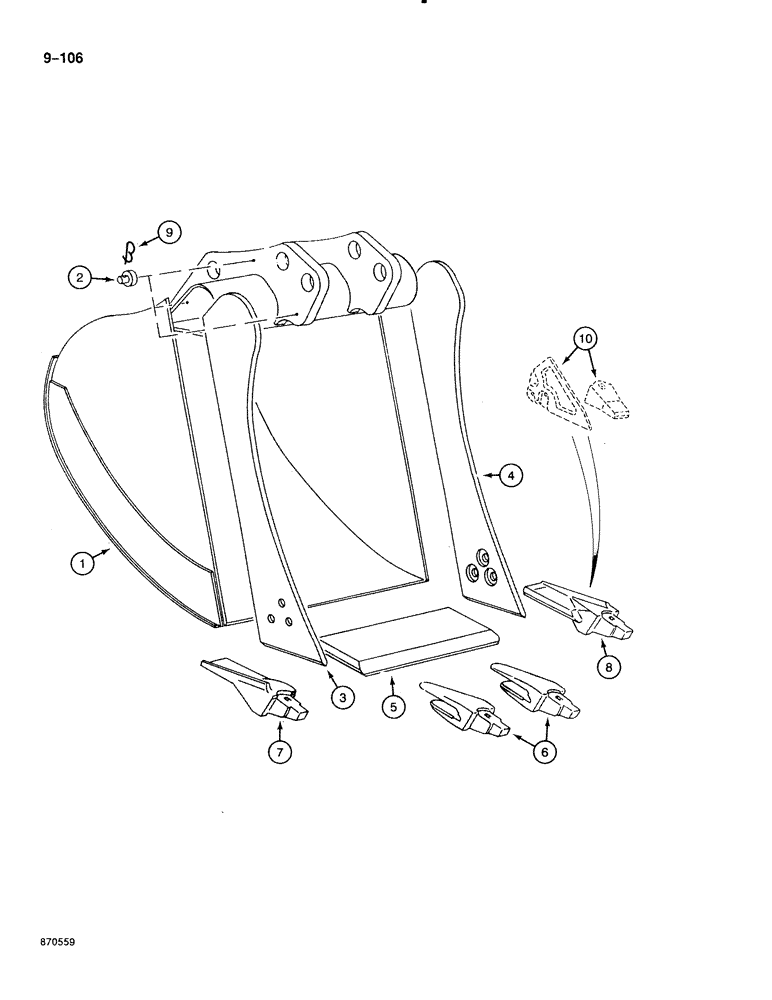

Схема запчастей Case 888 - (9-106) - BACKHOE BUCKET, BACKHOE BUCKET - 39-3/8" WIDE (09) - CHASSIS

Артикул

Название

Примечание

Количество

P755505

BACKHOE BUCKET ASSEMBLY - excavator, 39-3/8" wide, Include: Ref. 1 - 9

1шт.

Available from wholegoods department

1шт.

1

NSS

NOT SOLD SEPARAT

BACKHOE BUCKET - excavator

1шт.

2

P50053

SHAFT LOCK

PIN - lock, bucket pin

3шт.

3

P4724244

STIFFENER

CUTTING EDGE - side left-hand

1шт.

4

P4724245

STIFFENER

CUTTING EDGE - side right-hand

1шт.

P7754367

BLADE

CUTTING EDGE AND SHANK ASSEMBLY - bucket, Include: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket

1шт.

6

P604291

SUPPORT

SHANK - thoot, center

2шт.

7

P1504047

SHANK, BUCKET TOOTH

SHANK - thoot, left-hand

1шт.

8

P1504048

SHANK, BUCKET TOOTH

SHANK - thoot, right-hand

1шт.

9

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

3шт.

10

REF

INSTRUCTION

TEETH AND SIDE CUTTING EDGES - bucket, see figure 9-112

1шт.

Выбрано товаров: 13
