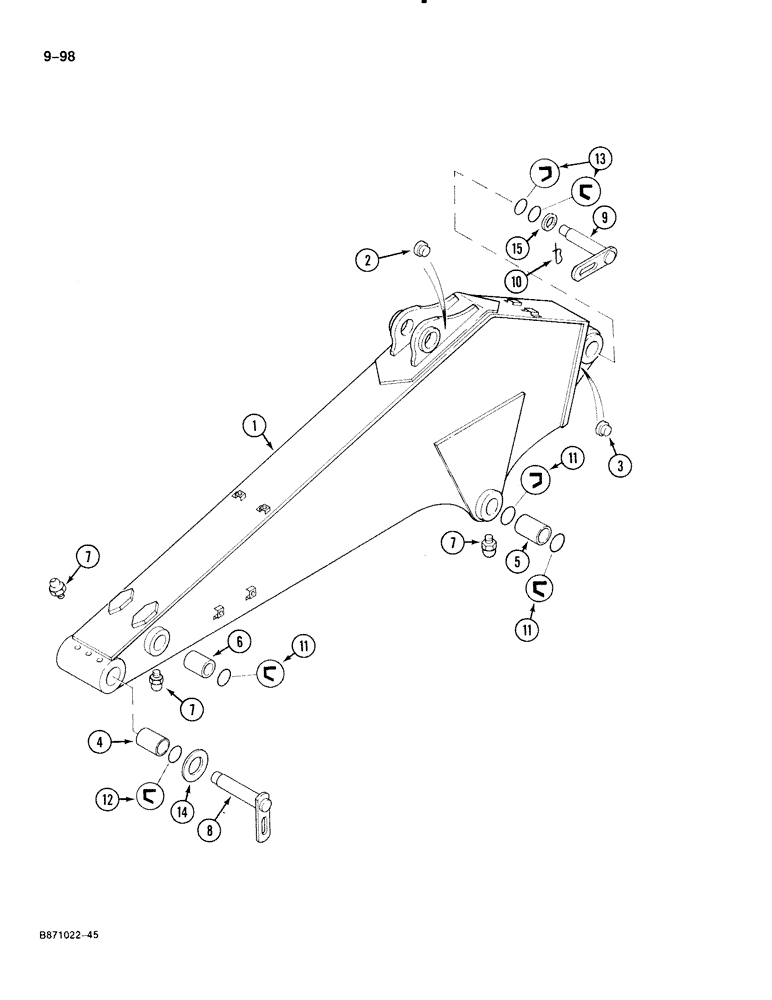

Запчасти Case 888 (9-098) - ARM AND MOUNTING PINS, WITH 2.70 M ARM (09) - CHASSIS

P755516

DIPPER

ARM ASSEMBLY - excavator, Include: Ref. 1 - 6

1шт.

Available from wholegoods department

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - excavator

1шт.

2

P1127863

SHAFT LOCK

PIN - lock, cylinder pin, Serial Range: welded-arm

2шт.

3

P50054

SHAFT LOCK

PIN - lock, arm pin, Serial Range: welded-arm

1шт.

4

P4628706

BUSHING

- pin, Serial Range: arm-bucket

2шт.

5

P1528673

BUSHING

- pin, Serial Range: arm-boom

2шт.

6

P5428747

BUSHING

- pin, Serial Range: link-arm

2шт.

7

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

2шт.

8

P130918

HEADED PIN

PIN, HEADED - mounting, Serial Range: arm-bucket

1шт.

9

P2930913

PIN

- mounting, Serial Range: arm-cylinder

1шт.

10

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

1шт.

11

P151309

SEAL

- grease, bushing

6шт.

12

P151313

SEAL

- grease, bushing

2шт.

13

P151310

SEAL

- grease, bushing

2шт.

14

P3145326

WASHER

- special, arm to bucket pin

2шт.

15

P745341

WASHER

- special, arm to cylinder pin

1шт.
