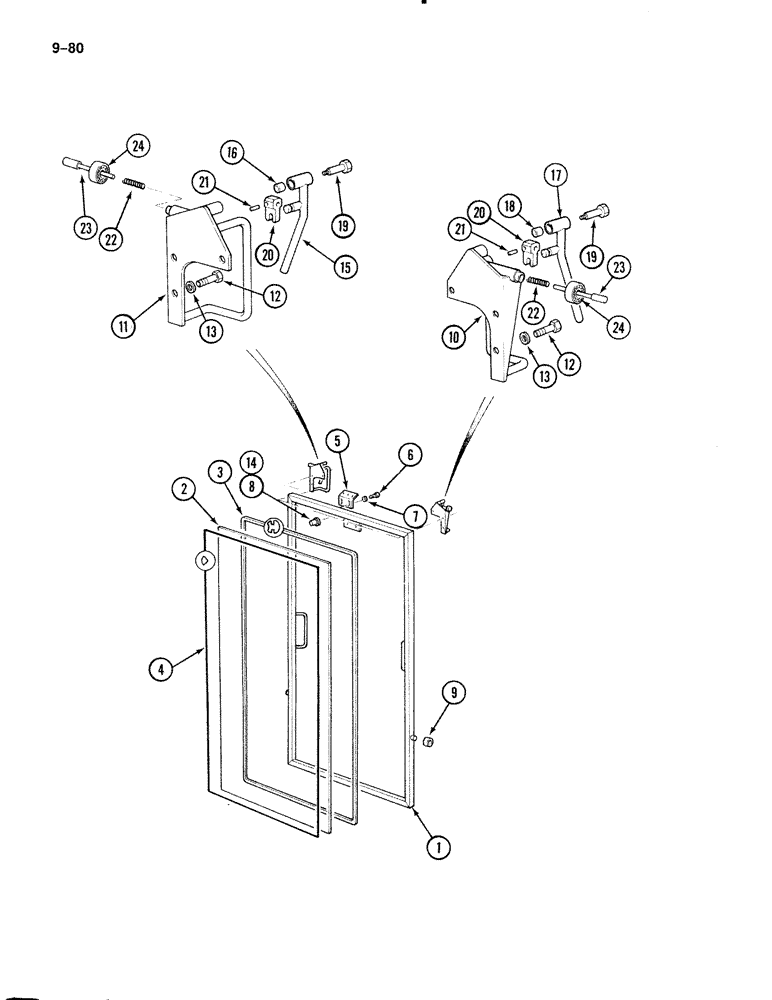

Запчасти Case 888 (9-080) - CAB WINDSHIELD (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
P1347086
WINDSHIELD
ASSEMBLY - cab, Include: Ref. 1 - 24
1шт.
1
NSS
NOT SOLD SEPARAT
FRAME - windshield
1шт.
2
P1347088
GLASS
- windshield
1шт.
3
P8046008
SEAL
RETAINER -, Serial Range: glass-frame
1шт.
4
REF
INSTRUCTION
SEAL - windshield glass, 15 ft 1-1/4 inch long, cut from P346008
1шт.
5
P2826130
SUPPORT
BRACKET - wiper terminal switch, see figure 4-22 for switches and wiring
1шт.
7
P745438
WASHER
- flat, 8 mm
2шт.
8
P234587
NUT
RETAINER - bolt, clip type
2шт.
9
P139633
BEARING
BALL BEARING - windshield track, at frame
2шт.
10
P852079
CYLINDER END CAP
BRACKET - windshield release, left-hand
1шт.
11
P852078
SUPPORT
BRACKET - windshield release, right-hand
1шт.
13
P745438
WASHER
- flat, 8 mm
6шт.
14
P234587
NUT
RETAINER - bolt, clip type
6шт.
P4842701
LEVER
HANDLE ASSEMBLY - windshield release, right-hand, Include: Ref. 15 and 16
1шт.
15
NSS
NOT SOLD SEPARAT
HANDLE - windshield release, right-hand
1шт.
16
P29299
SELF LUB RING
BUSHING - release handle
2шт.
P4042799
LEVER
HANDLE ASSEMBLY - windshield release, left-hand, Include: Ref. 17 and 18
1шт.
17
NSS
NOT SOLD SEPARAT
HANDLE - windshield release, left-hand
1шт.
18
P29299
SELF LUB RING
BUSHING - release handle
2шт.
19
P1827967
PIN
BOLT - shoulder, handle to bracket
2шт.
20
P5846251
CLEVIS
LEVER - lock plunger, replaced by P7646275, when replacing lever also order P5327897 plunger, Ref. 23
2шт.
21
P35720
SPLIT PIN/SAFETY PIN
ROLL PIN -, Serial Range: lever-plunger
2шт.
22
P738143
COMPRESSION SPRING
SPRING - plunger return
2шт.
23
P1127836
LARGE PIN
PLUNGER - windshield release, replaced by P5327897, when replacing plunger also order P7646275 lever, Ref. 20
2шт.
24
P139633
BEARING
BALL BEARING - windshield track, at release bracket
2шт.
Выбрано товаров: 27
