Запчасти Case 888 (9-078) - CAB DOOR (09) - CHASSIS

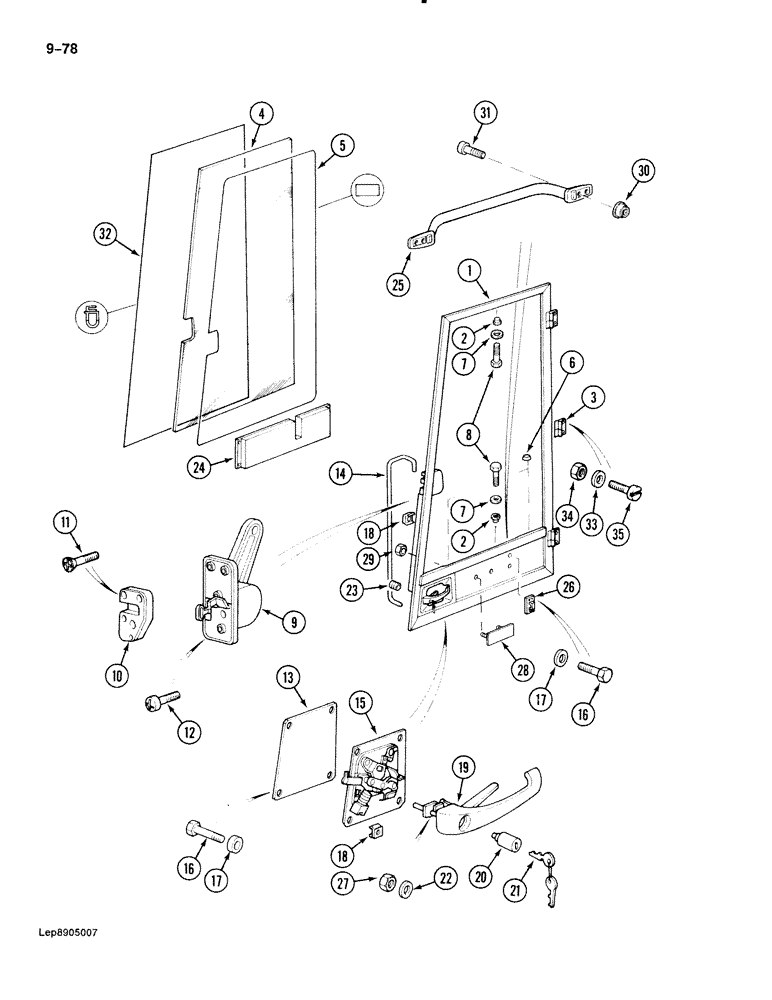

Схема запчастей Case 888 - (9-078) - CAB DOOR (09) - CHASSIS

Артикул

Название

Примечание

Количество

P8443828

CAB

ASSEMBLY - excavator, Include: Ref. 1 - 31

1шт.

P8043810

DOOR

ASSEMBLY - cab, Include: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab door

1шт.

2

P834513

NUT

RETAINER - bolt, sleeve type

2шт.

3

P736667

HINGE

-, Serial Range: door-cab

3шт.

P3337440

PLUG

- plastic, grease

2шт.

4

P1347056

GLASS

- cab door

1шт.

5

P203104

PACKAGE, REPAIR

SEAL - glass

1шт.

6

P741441

SPACER

PLUG - door frame

2шт.

7

P4328728

WASHER

SPACER - bolt, 12 mm thick

2шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

9

P852067

MECHANISM

LATCH - door, inside

1шт.

10

P852053

CATCH PLATE

PLATE - striker

1шт.

11

P32411

SCREW,Cross, M8 x 45, 10.9

Striker plate Cross, M8 x 45, 10.9

3шт.

12

P32570

SCREW

- slotted, 8 mm x 35 mm, door latch

1шт.

13

P1325374

DOOR COVER

PLATE - lock cover

1шт.

14

P2130617

THREADED ROD

ROD - inside latch to outside handle

1шт.

15

P852055

MECHANISM

PLATE ASSEMBLY - door lock

1шт.

16

P1133803

SCREW

BOLT - hex, 6 mm x 22 mm, lock, Serial Range: plate-door

6шт.

17

P3528799

WASHER

SPACER - bolt, 6 mm

6шт.

18

P1634573

NUT

- clip type, plate bolt

6шт.

P1352034

HANDLE

ASSEMBLY - cab, outside, Include: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

HANDLE - cab, outside

1шт.

20

P1352045

LOCK, CYLINDER

CYLINDER AND KEYS - door lock

1шт.

21

P1352009

KEY

- door lock

1шт.

22

P35001

WASHER

- flat, 6 mm

2шт.

23

P1037442

BLANK-OFF PLUG

STOP - door

1шт.

24

P522483

LARGE PLATE

INSULATION - lower door

1шт.

25

P1352047

HANDLE

- door

1шт.

26

P7128246

CATCH PLATE

STRIKER - door open latch

1шт.

27

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

2шт.

28

P1651599

TYPE PLATE

PLATE - CASE identification

1шт.

29

P2434587

NUT

- hex, 1/4"

2шт.

30

P35444

RIVET

RETAINER - sleeve type, 4 mm

2шт.

31

P32529

SCREW,Hex Soc Hd, M4 x 16

BOLT - hex socket, 4 mm x 16 mm

2шт.

32

P7146043

DOOR SEAL

SEAL - door to cab, not included with cab door assembly, order separately

1шт.

33

P34611

WASHER

- flat, 10 mm, not included with cab door assembly order separately

6шт.

34

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm, not included with cab door assembly, order separately

6шт.

35

P32415

SCREW

- slotted, 10 mm x 35 mm, grade 10.9, door hinge, not included with cab door assembly, order separately

6шт.

Выбрано товаров: 39
