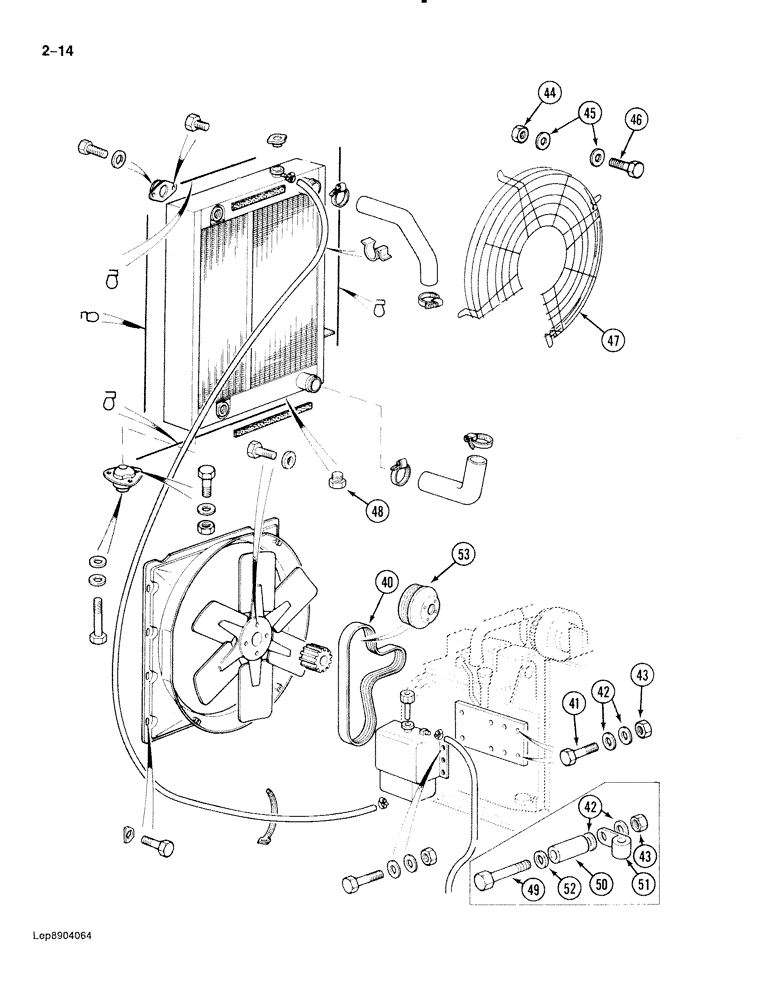

Запчасти Case 888 (2-014) - RADIATOR, OIL COOLER, HOSES AND COOLANT RECOVERY (02) - ENGINE

40

J911557

V-BELT,27.92mm W x 1422.4mm L, 8 Ribs

Radiator Fan 3.56 mm W x 1422.40 mm L, 8 Ribs

1шт.

41

P933817

SCREW

BOLT - hex, 10 mm x 22 mm, full threaded

2шт.

42

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

43

P34598

SAFETY NUT

NUT - hex self-locking, 10 mm

2шт.

44

P134596

SAFETY NUT

NUT - hex, self-locking 8 mm

4шт.

45

P3528794

WASHER

SPACER - bolt, 6 mm thick

8шт.

46

P233830

SCREW

BOLT - hex, 8 mm x 40 mm

4шт.

47

P2340490

PROTECTOR

GUARD - fan

1шт.

48

P1137424

PLUG

- 1/4" NPT, radiator

1шт.

49

P33832

SCREW

BOLT - hex, 10 mm x 110 mm

1шт.

50

P1231875

TUBE

- spacer

1шт.

51

P51921

CLAMP

- hose, large

1шт.

52

P4328796

WASHER

SPACER - bolt, 7 mm thick

1шт.

53

REF

INSTRUCTION

PULLEY - engine, see figure 2-18 or 2-20

1шт.
