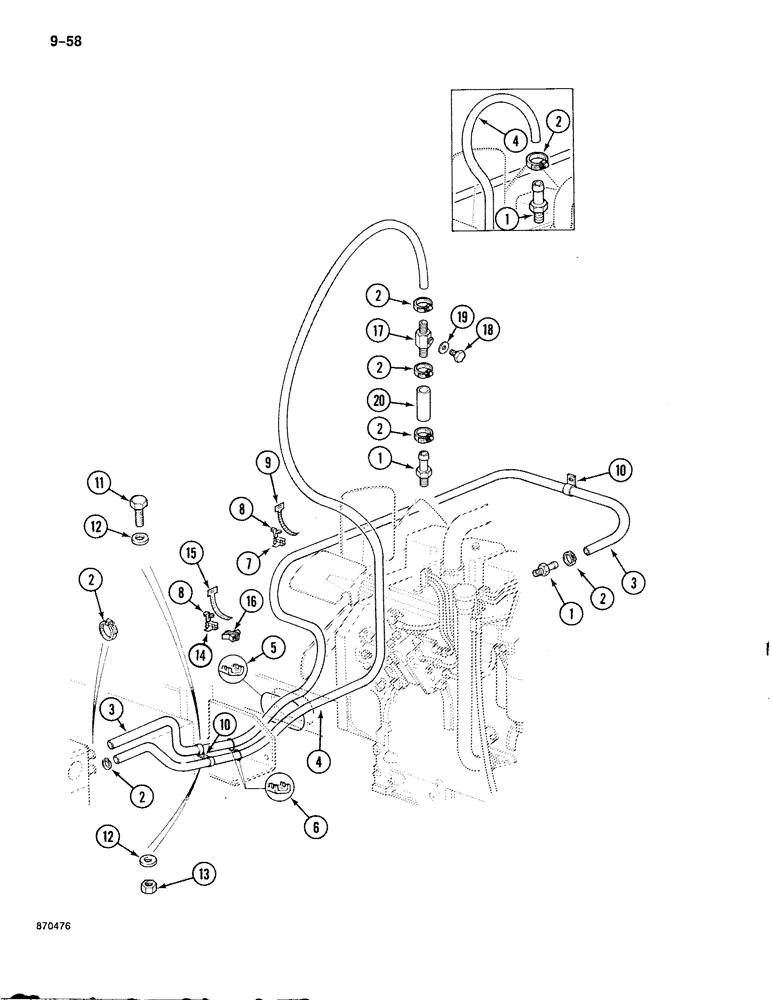

Запчасти Case 888 (9-058) - HEATER LINES TO ENGINE (09) - CHASSIS

1

P337520

FITTING

ADAPTER - hose barb, heater, Serial Range: hose-engine

2шт.

2

P3036994

CLAMP

- heater hose to engine and heater

6шт.

3

REF

INSTRUCTION

HOSE - 141-3/4 inch long, heater to engine, cut from P3636

1шт.

4

REF

INSTRUCTION

HOSE - 122-1/2" long, heater to adapter, cut from P3636

1шт.

5

REF

INSTRUCTION

GUARD - edge, hose, 9 inch long, cut from P1303158

1шт.

6

REF

INSTRUCTION

GUARD - edge, hose, 4-1/2 inch long, cut from P1303161

2шт.

7

P2036902

CLASP

CLIP - retainer, 3 mm - 7 mm range

1шт.

8

P2036939

CLASP

RETAINER - tie strap

1шт.

9

P51946

CLAMP

TIE STRAP - hoses to retainer and hoses, 10-1/8 inch long

1шт.

10

P836985

CLAMP

- heater, Serial Range: hoses-frame

5шт.

11

P833802

SCREW

BOLT - hex, 10 mm x 50 mm

1шт.

12

P3528795

WASHER

SPACER - bolt, 7 mm thick

2шт.

13

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.

14

P2036903

CLASP

CLIP - retainer, 8 mm - 13 mm range

1шт.

15

P136922

CLAMP

TIE STRAP - hose, 13-3/4 inch long

1шт.

16

P3036926

BASE

RETAINER - hose strap

2шт.

17

P1237246

FITTING

ADAPTER - bleed valve

1шт.

18

P433813

SCREW

PLUG - adapter

1шт.

19

P5346094

SEAL

- plug

1шт.

20

REF

INSTRUCTION

HOSE - 9-3/4" long, adapter to engine, cut from P3636

1шт.
