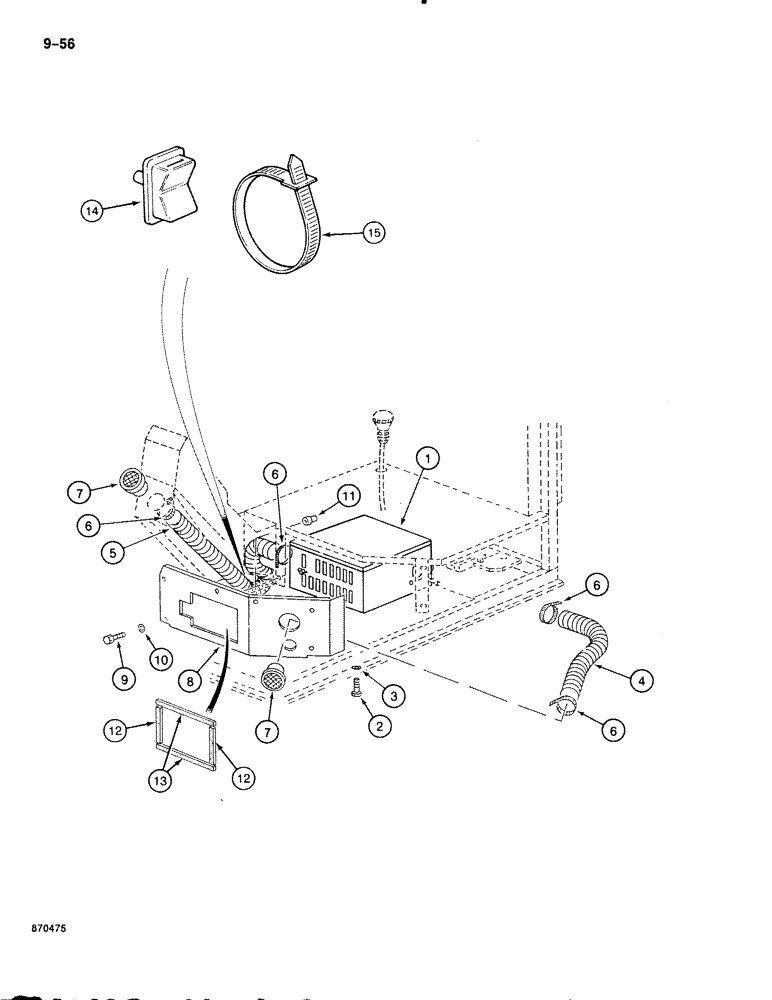

Запчасти Case 888 (9-056) - ADAPTING PARTS AND HEATER LINES (09) - CHASSIS

1

REF

INSTRUCTION

HEATER ASSEMBLY - cab, see figure 4-28

1шт.

2

P733035

SCREW

BOLT - hex, 6 mm x 35 mm

4шт.

3

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

4

P5931942

LOOM

HOSE - heater to lower diffuser

1шт.

5

P5931910

LOOM

HOSE - heater to windshield diffuser

1шт.

6

P1236903

CLAMP

- heater hose

4шт.

7

P3543238

DIFFUSER

- air

2шт.

8

P3126320

HOOD

PANEL - heater and lower diffuse

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

6шт.

10

P3528794

WASHER

SPACER - bolt, 6 mm thick

6шт.

11

P234587

NUT

RETAINER - bolt, at operator compartment

6шт.

12

REF

INSTRUCTION

SEAL - panel, 5-5/8" long, cut from P403145

2шт.

13

REF

INSTRUCTION

SEAL - panel, 15 inch long, cut from P403145

2шт.

14

P3036926

BASE

RETAINER - hose strap

1шт.

15

P136922

CLAMP

TIE STRAP - hose, 13-3/4 inch long

1шт.
