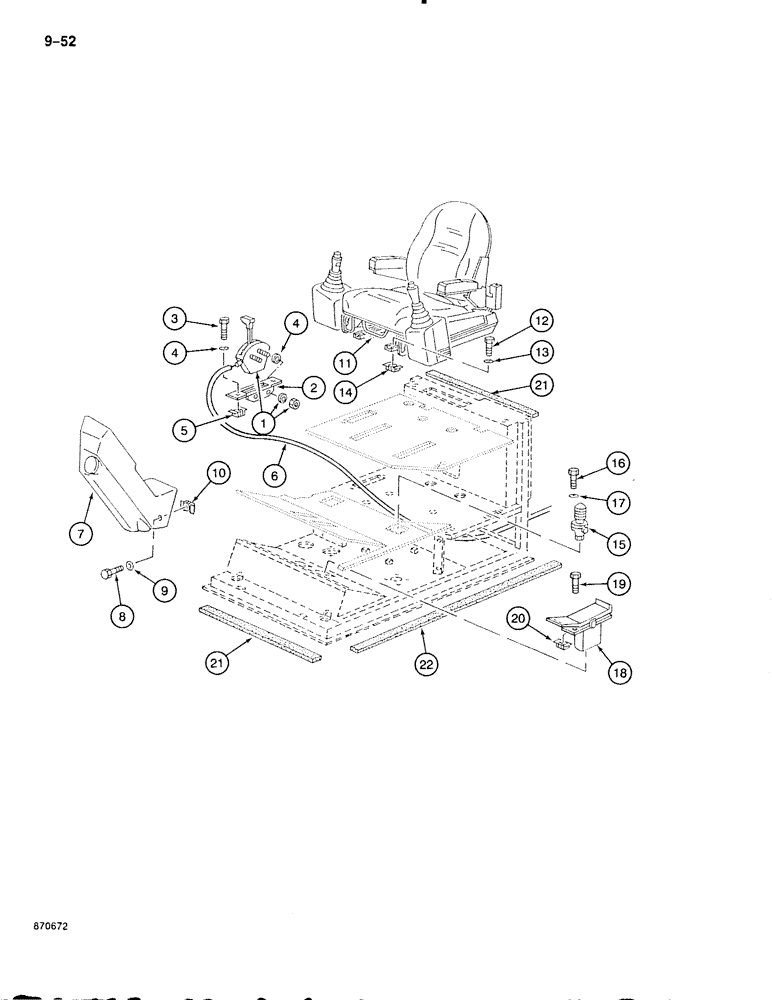

Запчасти Case 888 (9-052) - OPERATOR COMPARTMENT, MOUNTING PARTS FOR SEAT AND CONTROLS (09) - CHASSIS

1

P5242715

CASE

CONTROL ASSEMBLY - engine throttle, includes mounting hardware

1шт.

2

P4625692

SUPPORT

BRACKET - mounting, control assembly

1шт.

3

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

2шт.

4

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

5

P1634573

NUT

- square, cage type

2шт.

6

REF

INSTRUCTION

CABLE ASSEMBLY - engine throttle, see figure 9-32

1шт.

7

REF

INSTRUCTION

INSTRUMENT PANEL AND CONSOLE - electrical, see figure 4-30

1шт.

8

P933890

SCREW

BOLT - hex, 10 mm x 30 mm

3шт.

9

P3528795

WASHER

SPACER - bolt, 7 mm thick

3шт.

10

P1334560

NUT

- square, cage type

3шт.

11

REF

INSTRUCTION

SEAT AND HAND CONTROL VALVE CONSOLES - operator, see figures 9-40 and 9-42

1шт.

12

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

4шт.

13

P3528793

WASHER

SPACER - bolt, 8 mm thick

4шт.

14

P1334578

NUT

- square, cage type

4шт.

15

P2843549

PUMP, HYDRAULIC

PUMP ASSEMBLY - foot, control circuit, see figure 8-102

1шт.

16

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

4шт.

17

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

18

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, see figure 8-112

3шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

12шт.

20

P1334571

NUT

- square, cage type

12шт.

21

REF

INSTRUCTION

SEAL - platform, 34-7/8" long, cut from P3128, use P3578 adhesive for mounting

2шт.

22

REF

INSTRUCTION

SEAL - platform, 61-1/4" long, cut from P3128, use P3578 adhesive for mounting

2шт.
