Запчасти Case 888 (9-044) - SEAT, IF USED (09) - CHASSIS

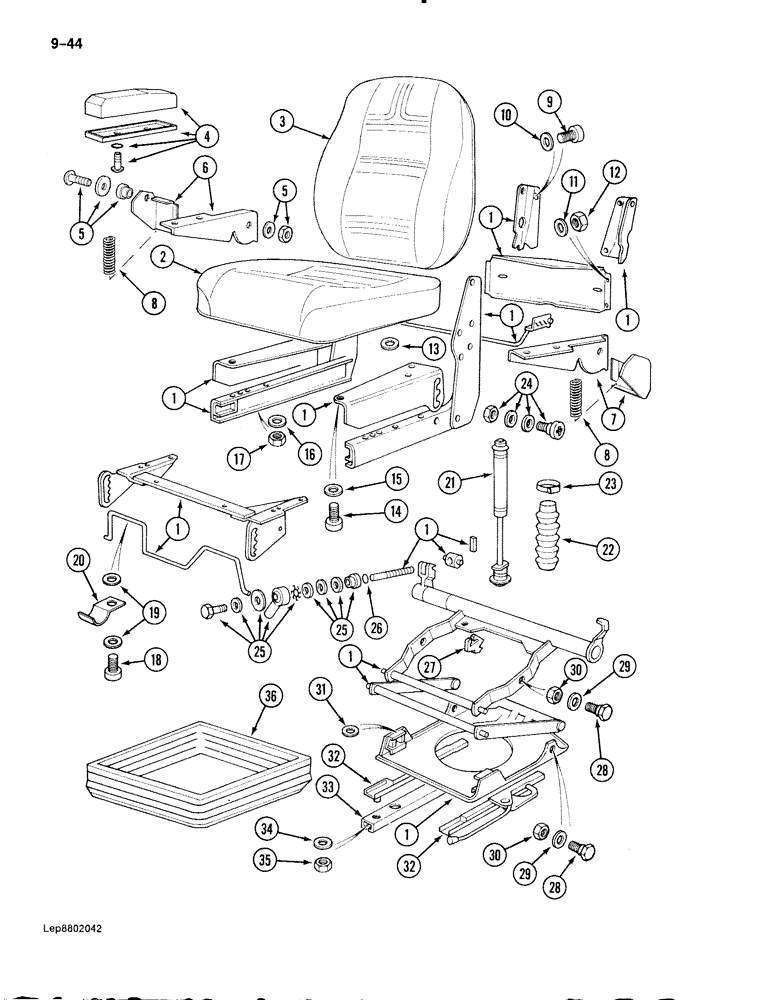

Схема запчастей Case 888 - (9-044) - SEAT, IF USED (09) - CHASSIS

Артикул

Название

Примечание

Количество

P1347047

SEAT

ASSEMBLY - operator's (Order P2047055) (See figure 9-48), Include: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - seat

1шт.

2

P1347059

CUSHION

- seat bottom

1шт.

3

P1347058

BACKREST

CUSHION - seat back

1шт.

P1347080

ARMREST

ASSEMBLY - seat, right-hand, includes Ref. 6 and 8

1шт.

P1347079

ARMREST

ASSEMBLY - seat, left-hand, includes Ref. 7 and 8

1шт.

4

P1347060

SET

ARMREST - seat, spare kit includes two bases and two mounting hardwares

1шт.

5

P1347061

SET OF PARTS

KIT - armrest pivot rachet, kit for armrests right and left handside, Include: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

BRACKET AND RACHET - armrest, right-hand

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET AND RACHET - armrest, left-hand

1шт.

8

P38288

SPRING

- armrest

1шт.

9

P1232917

SCREW

BOLT - seat back

4шт.

10

P34609

WASHER

- seat bolt

4шт.

11

P34609

WASHER

- stud

4шт.

12

P1334581

NUT

- stud

4шт.

13

P35001

WASHER

- base

4шт.

14

P1232916

SCREW

BOLT -, Serial Range: frame-cushiong

4шт.

15

P35001

WASHER

- cushion mounting bolt

4шт.

16

P34609

WASHER

- seat frame stud

4шт.

17

P34201

NUT

- seat frame stud

4шт.

18

P1232916

SCREW

BOLT -, Serial Range: frame-cushion

2шт.

19

P35001

WASHER

- clamp bolt

4шт.

20

P2726674

SUPPORT

CLAMP - rod

2шт.

21

P1343227

SHOCK ABSORBER

- seat

1шт.

22

P1340448

BELLOWS

BOOT - shock absorber

1шт.

23

P36998

COLLAR CLAMP

CLAMP - boot

1шт.

24

P1047064

BOLT

KIT - shock absorber hardware

1шт.

25

P1047062

PAWL

ASSEMBLY - seat

1шт.

26

P336318

RING, SNAP

RING - retaining

1шт.

27

P641436

STOP

- seat

2шт.

28

P1533038

SCREW

BOLT - special

4шт.

29

P35004

WASHER

- bolt

4шт.

30

P34598

SAFETY NUT

NUT - hex, mounting bolt

4шт.

31

P34609

WASHER

- lower plate

4шт.

32

P1047063

SET

TRACK SET - right-hand and left-hand

1шт.

33

P348301

BLOCK

RAIL - lower

2шт.

34

P35002

WASHER

- lock

4шт.

35

P134596

SAFETY NUT

NUT - hex

4шт.

36

P2340465

BELLOWS

COVER - suspension mechanism

1шт.

Выбрано товаров: 39
