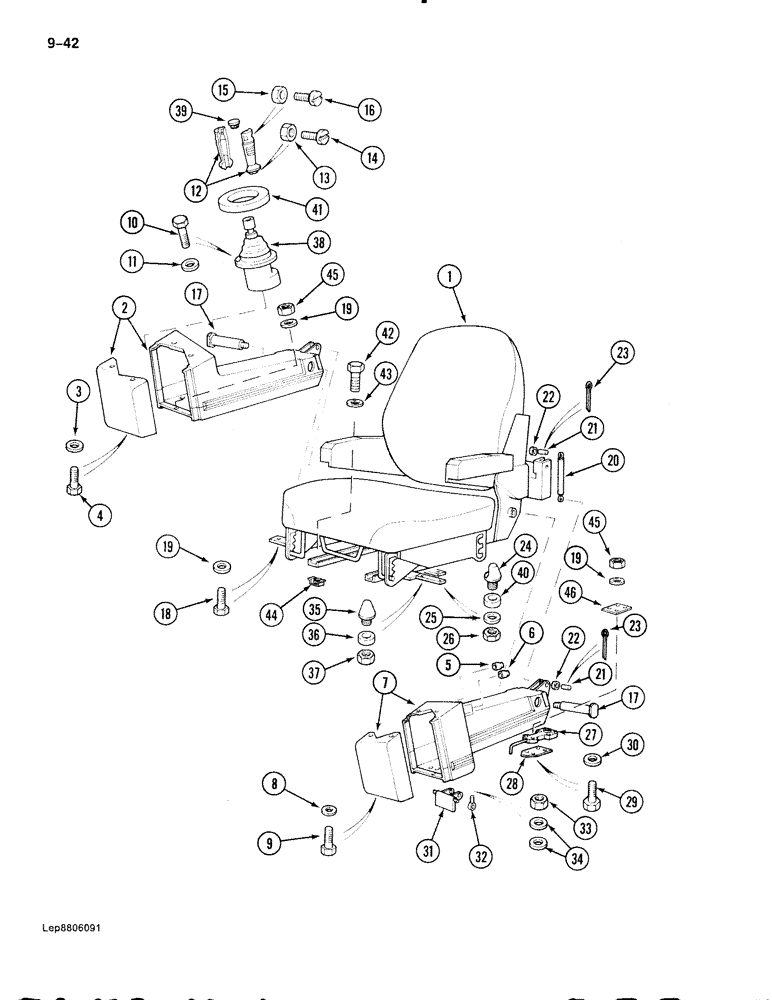

Запчасти Case 888 (9-042) - HAND CONTROL VALVE CONSOLES, P.I.N. FROM 74233 AND AFTER (09) - CHASSIS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operator's, see figure 9-48

2шт.

P5242763

CASE

HOUSING ASSEMBLY - console right-hand, Include: Ref. 3 and 4

1шт.

3

P35001

WASHER

- flat, 6 mm

1шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

5

P1737419

PLUG

- plastic, left-hand console

2шт.

6

P1737425

PLASTIC PLUG

PLUG - plastic, left-hand console

2шт.

7

P5242764

CASE

HOUSING ASSEMBLY - console, left-hand, Include: Ref. 8 and 9

1шт.

8

P35001

WASHER

- flat, 6 mm

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

10

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

8шт.

11

P34607

WASHER

- flat, 6 mm

8шт.

12

P152069

HANDLE

- half

4шт.

13

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

14

P32549

SCREW

- handle, lower, 6 mm x 16 mm

4шт.

15

P34107

NUT - hex, M4

4шт.

16

P32530

SCREW

- handle, upper, 4 mm x 10 mm

4шт.

17

P1027977

PIN

- pivot

2шт.

18

P33808

SCREW

BOLT - hex head, 6 mm x 30 mm

2шт.

19

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

20

P1436931

CYLINDER ASSY.

SHOCK ABSORBER - left-hand console

1шт.

21

P827645

PIN

- shock absorber

2шт.

22

P35001

WASHER

- flat, 6 mm

4шт.

23

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm

4шт.

24

P152075

CONE

RETAINER - latch

1шт.

25

P34611

WASHER

- latch retainer mounting

1шт.

26

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.

27

P1352035

LOCK ASSY

LATCH - left-hand console

1шт.

28

P323672

HOOD

PLATE - mounting

1шт.

29

P733035

SCREW

BOLT - hex, 6 mm x 35 mm

4шт.

30

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

31

P852064

HANDLE

- latch

1шт.

32

P1027968

CLEVIS

CONNECTOR - at handle

1шт.

33

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

1шт.

34

P35002

WASHER

- flat, 8 mm

1шт.

35

P741463

STOP

BUMBER - left-hand console

1шт.

36

P3528794

WASHER

SPACER - bumper mounting, 6 mm thick

1шт.

37

P34113

NUT

- hex, 8 mm

1шт.

38

REF

INSTRUCTION

CONTROL VALVE - hand, parts list see figure 8-110

2шт.

39

P2537472

PLASTIC PLUG

PLUG - control handle

2шт.

40

P34614

WASHER

- flat, 14 mm

1шт.

41

P7230184

PROTECTOR

RING - rubber, hand control valve

2шт.

42

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

4шт.

43

P3528793

WASHER

SPACER - bolt, 8 mm thick

4шт.

44

P1334578

NUT

- hex, 12 mm

4шт.

45

P234513

SAFETY NUT

NUT - hex, 6 mm

6шт.

46

P2023290

LARGE PLATE

PLATE - mounting, lock

1шт.
