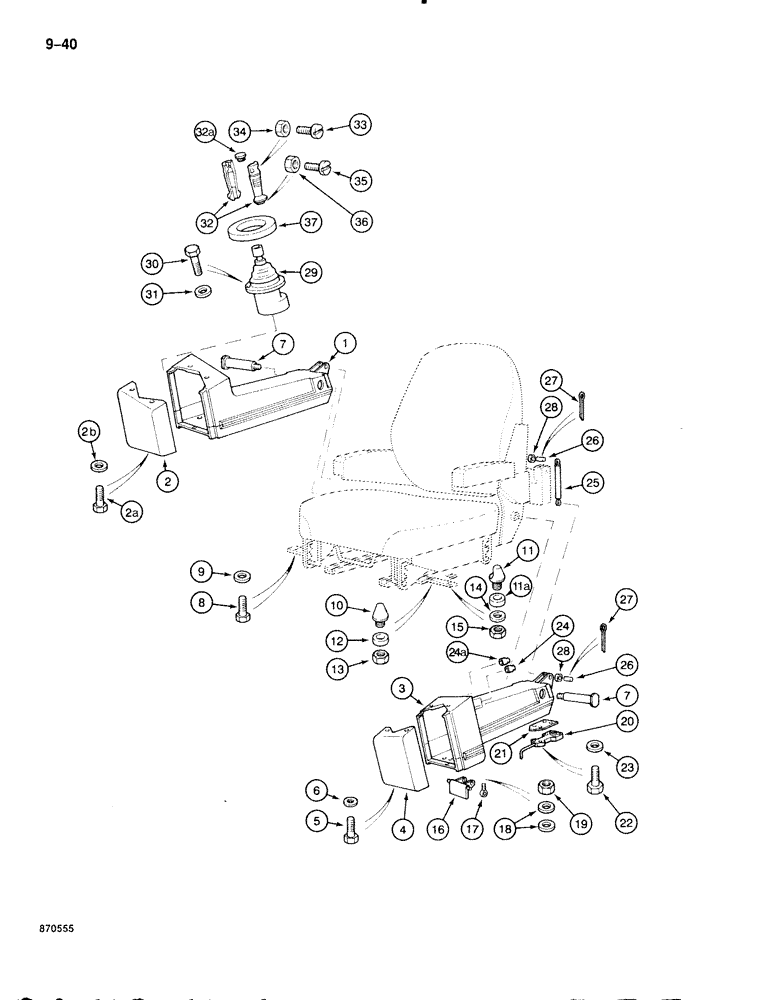

Запчасти Case 888 (9-040) - HAND CONTROL VALVE CONSOLES, P.I.N. FROM 74163 TO 74232 (09) - CHASSIS

P4842738

CASE

HOUSING ASSEMBLY - console right-hand, Include: Ref. 1 - 2B

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - right-hand console

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - front, right-hand console

1шт.

2a

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

2b

P35001

WASHER

- flat, 6 mm

1шт.

P4842739

CASE

HOUSING ASSEMBLY - console, left-hand, Include: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - left-hand console

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - front, left-hand console

1шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

6

P35001

WASHER

- flat, 6 mm

1шт.

7

P1027977

PIN

- pivot

2шт.

8

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

9

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

10

P741463

STOP

BUMPER - left-hand console

1шт.

11

P152075

CONE

RETAINER - latch

1шт.

11a

P34614

WASHER

- flat, 14 mm

1шт.

12

P3528794

WASHER

SPACER - bumper mounting, 6 mm thick

1шт.

13

P34113

NUT

- hex, 8 mm

1шт.

14

P34611

WASHER

- latch retainer mounting

1шт.

15

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.

16

P852064

HANDLE

- latch

1шт.

17

P1027968

CLEVIS

CONNECTOR - at handle

1шт.

18

P35002

WASHER

- flat, 8 mm

2шт.

19

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

1шт.

20

P852065

LOCK ASSY

LATCH - left-hand console

1шт.

21

P323672

HOOD

PLATE - mounting

1шт.

22

P733035

SCREW

BOLT - hex, 6 mm x 35 mm

4шт.

23

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

24

P1737419

PLUG

- plastic, left-hand console

2шт.

24a

P1737425

PLASTIC PLUG

PLUG - plastic, left-hand console

2шт.

25

P1436931

CYLINDER ASSY.

SHOCK ABSORBER - left-hand console

1шт.

26

P827645

PIN

- shock absorber

2шт.

27

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm

4шт.

28

P35001

WASHER

- flat, 6 mm

4шт.

29

REF

INSTRUCTION

CONTROL VALVE - hand, parts list see figure 8-110

2шт.

30

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

8шт.

31

P34607

WASHER

- flat, 6 mm

8шт.

32

P152069

HANDLE

- half

4шт.

32a

P2537472

PLASTIC PLUG

PLUG - control handle

2шт.

33

P32530

SCREW

- handle, upper, 4 mm x 10 mm

4шт.

34

P34107

NUT - hex, 4 mm

4шт.

35

P32549

SCREW

- handle, lower, 6 mm x 16 mm

4шт.

36

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

37

P7230184

PROTECTOR

RING - rubber, hand control valve

2шт.
