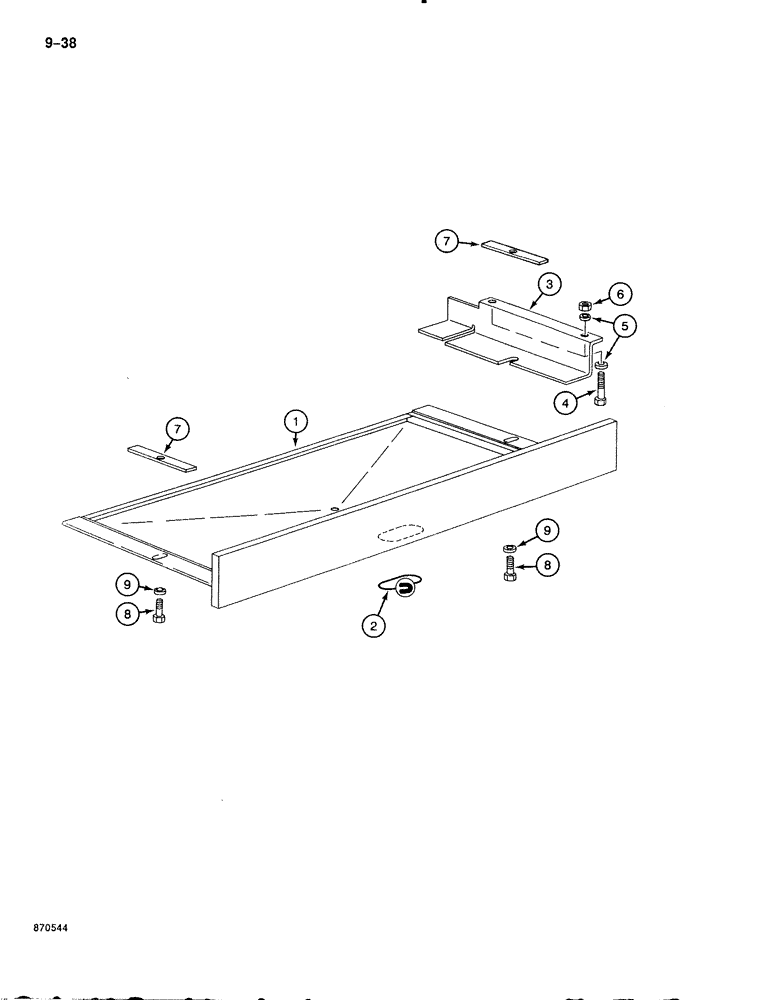

Запчасти Case 888 (9-038) - TURNTABLE LOWER ACCESS COVER (09) - CHASSIS

1

P7043894

SPOOL

COVER - access, lower turntable, Include: Ref. 2

1шт.

2

REF

INSTRUCTION

SEAL - rubber, 13-1/4" long, cut from P303101, use P3578 adhesive to, Serial Range: retain-cover

1шт.

3

P3126328

HOOD

BRACKET - support, access cover

1шт.

4

P33820

SCREW

BOLT - hex, 10 mm x 45 mm

2шт.

5

P4328796

WASHER

SPACER - bolt, 7 mm thick

4шт.

6

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

7

P6522793

PLATE

RETAINER - access cover

2шт.

8

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, Hex, M10 x 25, 10.9, Full Thd

2шт.

9

P4328796

WASHER

SPACER - bolt, 7 mm thick

2шт.
