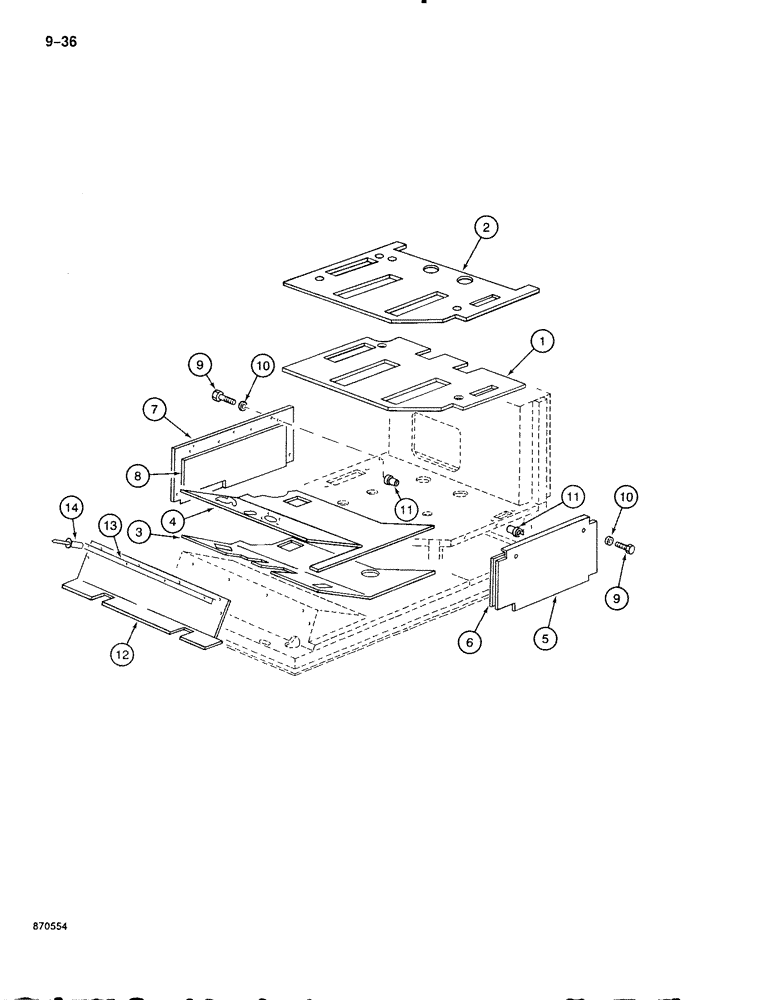

Запчасти Case 888 (9-036) - OPERATOR COMPARTMENT PANELS AND FLOORMATS (09) - CHASSIS

1

P3841461

LARGE PLATE

PAD - insulation, rear floormat

1шт.

2

P3841460

MAT

FLOORMAT - cab, rear

1шт.

3

P3841427

LARGE PLATE

PAD - insulation, center floormat

1шт.

4

P3841407

MAT

FLOORMAT - cab, center

1шт.

5

P4823416

HOOD

PANEL - cab, rear, left-hand side

1шт.

6

P3841421

LARGE PLATE

PAD - insulation, left-hand rear panel

1шт.

7

P4823417

HOOD

PANEL - cab rear, right-hand side

1шт.

8

P3841422

LARGE PLATE

PAD - rear panel, right-hand side

1шт.

9

P533834

SCREW

BOLT - hex, 5 mm x 16 mm

8шт.

10

P34605

WASHER

- flat, 5 mm

8шт.

11

P1334551

NUT

RETAINER - bolt, sleeve type

8шт.

12

P3841420

MAT

FLOORMAT - cab, front

1шт.

13

P1831667

ANGLE BAR

RETAINER - floormat to cab platform

1шт.

14

P35446

RIVET

POP RIVET - 8 mm x 24 mm, Serial Range: retainer-platform

4шт.
