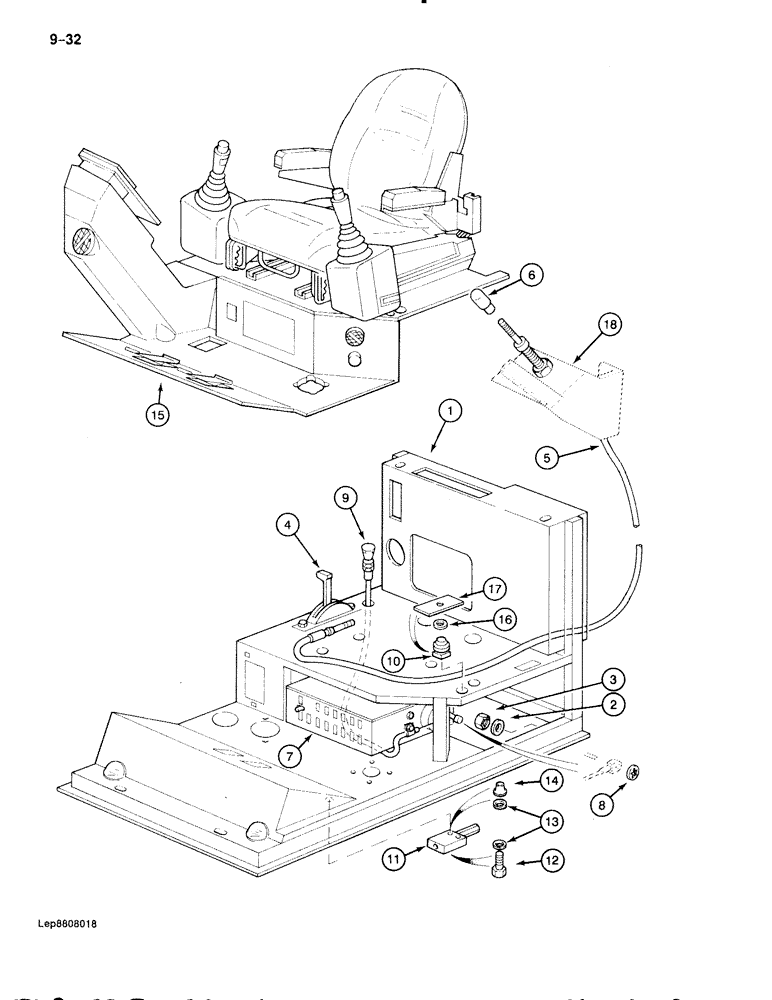

Запчасти Case 888 (9-032) - SEAT AND FLOOR PLATE MOUNTING, P.I.N. FROM 74278, 74279, 74282 TO 74418, 15201 AND AFTER (09) - CHASSIS

1

P7043881

FLOOR

PLATFORM - mounting, seat and floor plate, Include: Ref. 2 and 3

1шт.

2

P3528794

WASHER

SPACER - nut, 6 mm thick

1шт.

3

P34113

NUT

- hex, 8 mm

1шт.

4

REF

INSTRUCTION

CONTROL ASSEMBLY - engine throttle, see figure 9-52

1шт.

5

P4831322

CABLE

ASSEMBLY engine throttle, 3800 mm, 149.6 in.

1шт.

6

P1329948

TAPPET

RETAINER - cable throttle arm

1шт.

7

REF

INSTRUCTION

HEATER ASSEMBLY - cab - see figure 4-28

1шт.

8

P936355

RING

SNAP RING - heater control cable

1шт.

9

P4831326

CONTROL SLIDE

CABLE ASSEMBLY - heater control

1шт.

10

P2141693

SWITCH

- emergency shutoff

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - travel speed limiter, see figure 8-114, Serial Range: -15262

1шт.

12

P133865

SCREW

BOLT - hex, 8 mm x 60 mm, Serial Range: -15262

2шт.

13

P3538794

SPACER - bolt, 6 mm thick, Serial Range: -15262

4шт.

14

P234587

NUT

RETAINER - bolt, sleeve type, Serial Range: -15262

2шт.

15

REF

INSTRUCTION

OPERATOR COMPARMENT - excavator, see figure 9-52

1шт.

16

P3428501

WASHER

SPACER - switch (P.I.N. from 74194, 74200), Start Serial: 74207

1шт.

17

P1251565

DECAL

- switch, emergency shutoff

1шт.

18

REF

INSTRUCTION

BRACKET - throttle cable, see figure 9-50

1шт.

P3326365

DOOR COVER

PLATE, support the rear platform

1шт.
