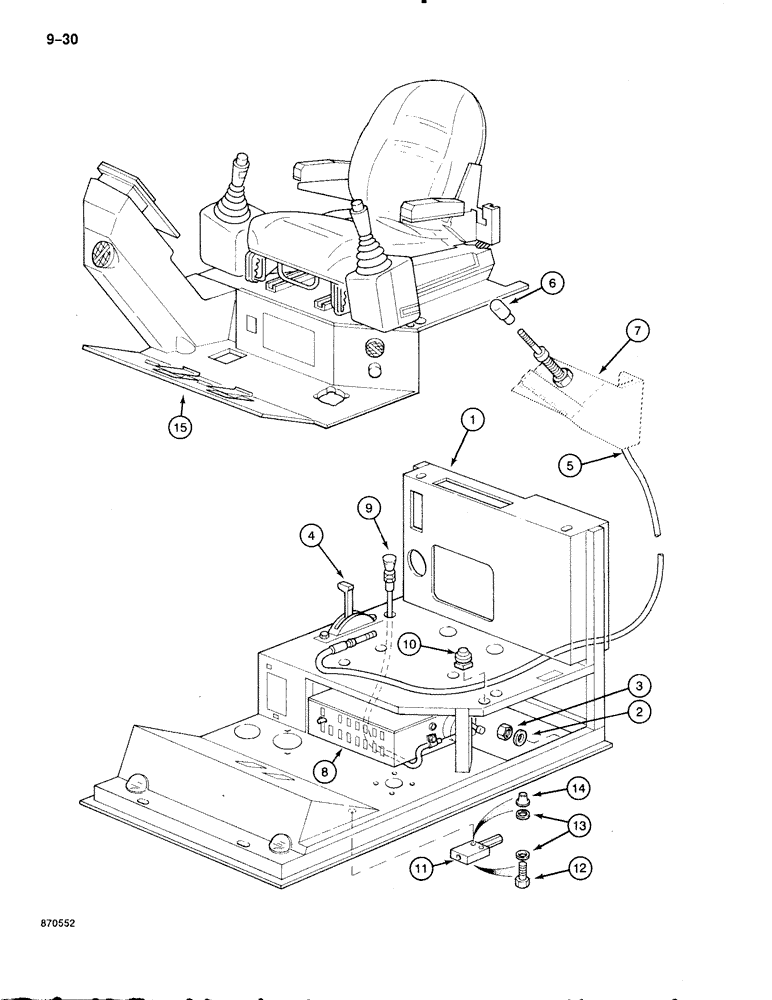

Запчасти Case 888 (9-030) - SEAT AND FLOOR PLATE MOUNTING, P.I.N. FROM 74163 TO 74277, 74280, 74281 (09) - CHASSIS

1

P7043881

FLOOR

PLATFORM - mounting, seat and floor plate, Include: Ref. 2 and 3

1шт.

2

P3528794

WASHER

SPACER - nut, 6 mm thick

1шт.

3

P34113

NUT

- hex, 8 mm

1шт.

4

REF

INSTRUCTION

CONTROL ASSEMBLY - engine throttle, see figure 9-52

1шт.

5

P4831322

CABLE

ASSEMBLY - engine throttle

1шт.

6

P1329948

TAPPET

RETAINER - cable throttle arm

1шт.

7

REF

INSTRUCTION

BRACKET - throttle cable, see figure 9-50

1шт.

8

REF

INSTRUCTION

HEATER ASSEMBLY - cab - see figure 4-28

1шт.

clamp that holds cable from ref #9 to ref #8 is NSS and must be obtained locally. (cable is approx 10 mm in dia.)

1шт.

9

P4831318

CONTROL SLIDE

CABLE ASSEMBLY - heater control

1шт.

Ref #9A - P4831326 Cable with Loop at the Heater end.

1шт.

10

P2141693

SWITCH

- emergency shutoff

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - travel speed limiter, see figure 8-114

1шт.

12

P133865

SCREW

BOLT - hex, 8 mm x 60 mm

2шт.

13

P3528794

WASHER

SPACER - bolt, 6 mm thick

4шт.

14

P234587

NUT

RETAINER - bolt, sleeve type

2шт.

15

REF

INSTRUCTION

OPERATOR COMPARTMENT - excavator, see figure 9-52

1шт.
