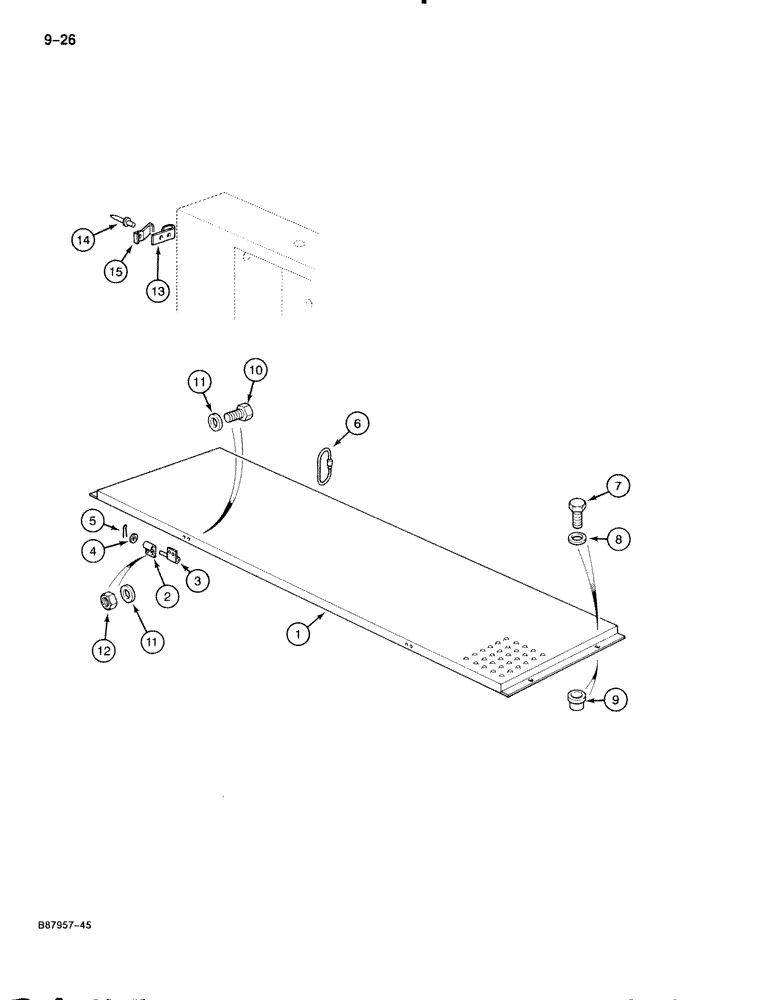

Запчасти Case 888 (9-026) - OPERATOR PLATFORM (09) - CHASSIS

1

P4247953

WALKWAY

PLATFORM - operator walkway, Include: Ref. 2

1шт.

2

P736696

FENDER

BRACKET - platform hinge

2шт.

3

P736697

FIXED HINGE

HINGE - platform

2шт.

4

P34607

WASHER

- flat, 6 mm

2шт.

5

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm

2шт.

6

P1352018

HANDLE

- operator platform walkway lift

1шт.

7

P933890

SCREW

BOLT - hex, 10 mm x 30 mm, full thread

2шт.

8

P3528795

WASHER

SPACER - bolt, 7 mm thick

2шт.

9

P35473

RIVET

RETAINER - bolt, sleeve type

2шт.

10

P733029

SCREW

BOLT - hex, 8 mm x 30 mm, full thread

8шт.

11

P3528794

WASHER

SPACER - bolt, 6 mm thick

16шт.

12

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

9шт.

13

P3036960

HOOK

BRACKET - operator platform latch

1шт.

14

P35418

RIVET

POP RIVET - 8 mm x 17 mm, Serial Range: bracket-console

2шт.

15

P3036892

RETAINER - operator platform handle latch security

1шт.
