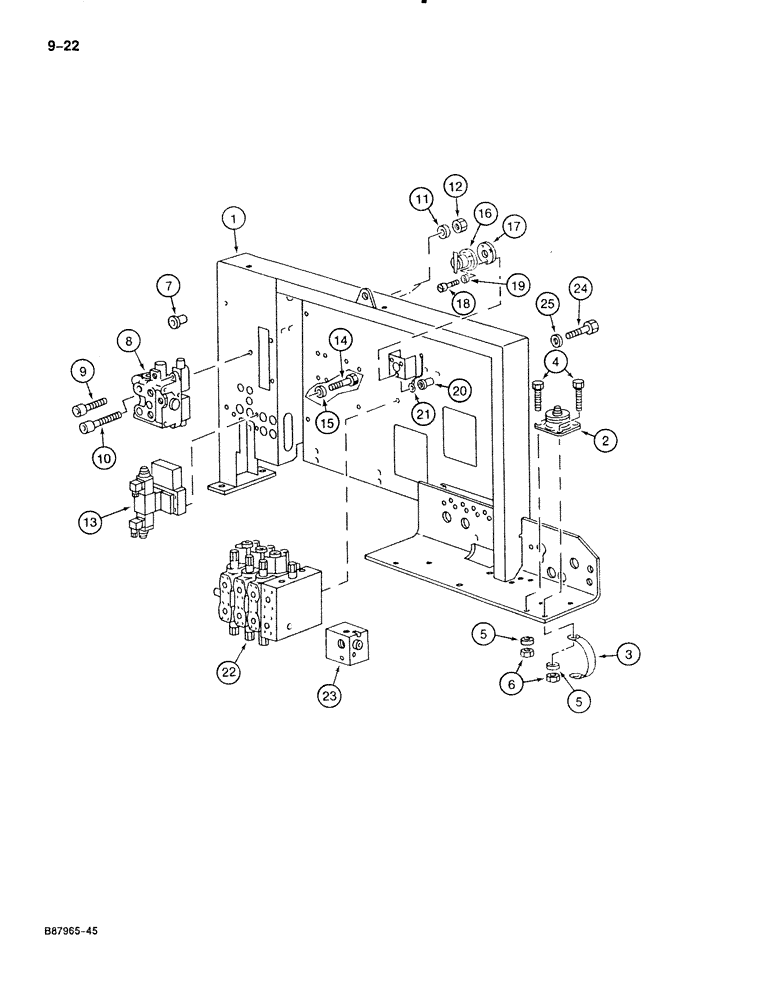

Запчасти Case 888 (9-022) - VALVE MOUNTING PANEL (09) - CHASSIS

1

P7543804

PARTITION

PANEL - valve mounting

1шт.

2

P3841491

SUPPORT

MOUNT - rubber, cab rear

2шт.

3

P41824

NEG BATTERY CABLE

STRAP - ground, rear cab mount

1шт.

4

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

5шт.

5

P3528795

WASHER

SPACER - bolt, 7 mm thick

5шт.

6

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

5шт.

7

P234587

NUT

RETAINER - bolt, sleeve type

8шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - swing control, see figure 8-90

1шт.

9

P1232959

SCREW

BOLT - hex socket, 8 mm x 50 mm, grade 10.9

2шт.

10

P1232960

SCREW

BOLT - hex socket, 8 mm x 75 mm, grade 10.9

1шт.

11

P3528794

WASHER

SPACER - bolt, 6 mm thick

3шт.

12

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

3шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid and swing brake release, see figure 8-86

1шт.

14

P732909

SCREW

BOLT - hex socket, 8 mm x 25 mm

3шт.

15

P3528794

WASHER

SPACER - bolt, 6 mm thick

3шт.

16

P1340721

PEDESTAL

SOCKET harness, boom lamp, replaced P40740

1шт.

17

P7546095

SEAL

GASKET - lamp socket

1шт.

18

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

3шт.

19

P3528799

WASHER

SPACER - bolt, 4 mm thick

3шт.

20

P834513

NUT

RETAINER - bolt, sleeve type

3шт.

21

P8547258

ELECTRICAL WIRE

WIRE ASSEMBLY - socket ground

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, see figure 8-78

1шт.

23

REF

INSTRUCTION

BLOCK ASSEMBLY - attachment control valve, see figure 8-84

1шт.

24

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

3шт.

25

P3528793

WASHER

SPACER - bolt, 8 mm thick

3шт.

P2154956

PARTITION

PANEL, adopted new

1шт.

P3843606

BLOCK

VALVE swing control, adopted new

1шт.

P6549059

PIPE

adopted new

1шт.

P7447155

PIPE

adopted new

1шт.
