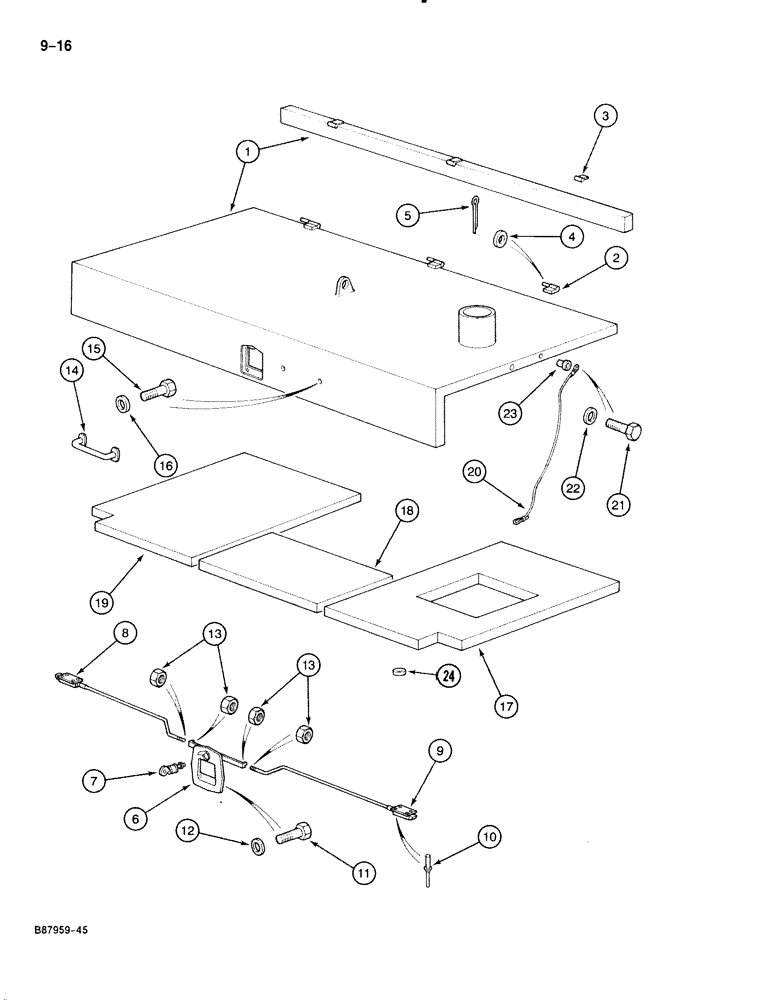

Запчасти Case 888 (9-016) - ENGINE UPPER ACCESS COVER (09) - CHASSIS

1

P7743822

COWLING

COVER AND HINGE ASSEMBLY - engine upper access, Include: Ref. 2 - 5

1шт.

2

P36669

FIXED HINGE

HINGE - cover

3шт.

3

P36667

FENDER

BRACKET - hinge

3шт.

4

P34607

WASHER

- flat, 6 mm

3шт.

5

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm

3шт.

P1352003

LOCK ASSY

LOCK ASSEMBLY - upper access cover, Include: Ref. 6 - 9

1шт.

6

P852096

HANDLE

AND LOCK ASSEMBLY - cover, Include: Ref. 7

1шт.

7

P152083

LOCK, CYLINDER

CYLINDER AND KEY - lock

1шт.

Ref #7A - P1352009 Key referred to in Ref #7

1шт.

P2340499

DOOR COVER

PROTECTOR - cylinder, not shown

1шт.

8

P1352027

END FITTING

LATCH AND ROD ASSEMBLY - cover, right-hand side

1шт.

9

P1352028

END FITTING

LATCH AND ROD ASSEMBLY - cover, left-hand side

1шт.

10

P35413

RIVET

POP RIVET - 8 mm x 16,5 mm

8шт.

11

P32621

SCREW

BOLT - hex, 6 mm x 15 mm

4шт.

12

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

13

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

14

P1352041

HANDLE

- cover lift (Replaces P152090)

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

16

P3528794

WASHER

SPACER - bolt, 6 mm

2шт.

17

P3841448

FOAM

PAD - insulation, access cover, left-hand

1шт.

18

P3841449

FOAM

PAD - insulation, access cover, center

1шт.

19

P3841450

FOAM

PAD - insulation, access cover, right-hand

1шт.

20

P2531358

CABLE

- upper access cover

1шт.

21

P133884

SCREW

BOLT - hex, 8 mm x 35 mm

1шт.

22

P3528794

WASHER

SPACER - bolt, 6 mm thick

1шт.

23

P35422

RIVET

RETAINER - bolt, sleeve type

1шт.

24

P3036998

CLIP,ELECTRICAL

RETAINER - pad to cover, if used

15шт.
