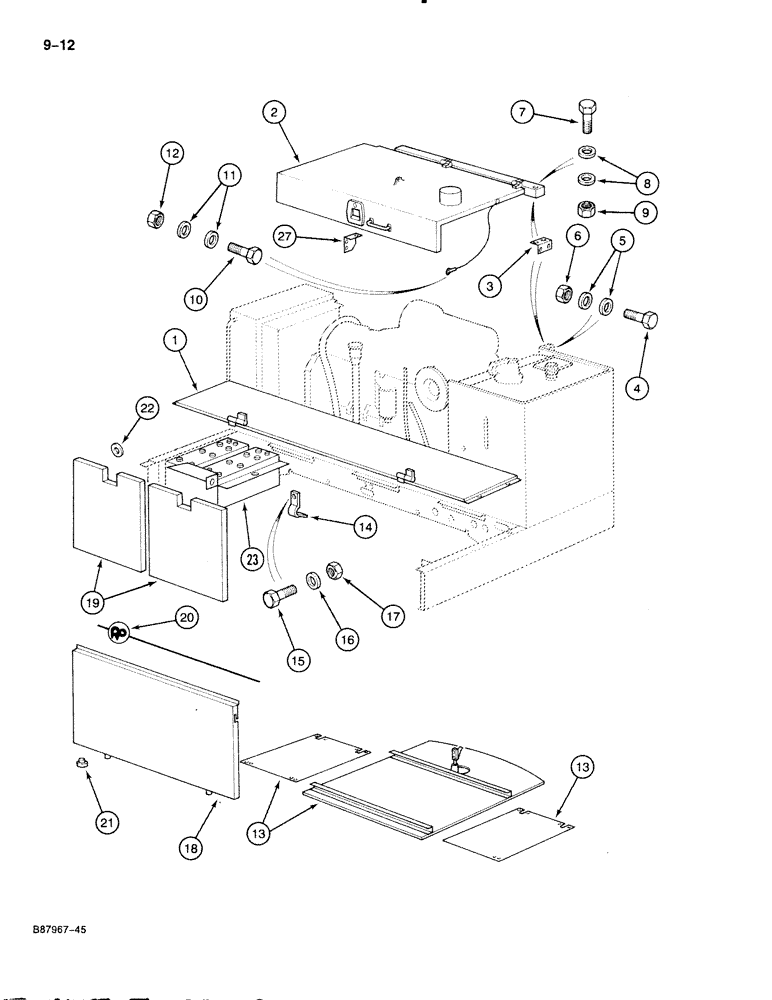

Запчасти Case 888 (9-012) - ENGINE ACCESS COVERS (09) - CHASSIS

1

REF

INSTRUCTION

PLATFORM - operator, see figure 9-26

1шт.

2

REF

INSTRUCTION

COVER ASSEMBLY - upper engine access, see figure 9-16

1шт.

3

P1831625

ANGLE

BRACKET - mounting, access cover

2шт.

4

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

4шт.

5

P3528795

WASHER

SPACER - bolt, 7 mm thick

8шт.

6

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

7

P933816

SCREW

BOLT - hex, 10 mm x 95 mm

2шт.

8

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

9

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

10

P133884

SCREW

BOLT - hex, 8 mm x 35 mm

1шт.

11

P3528794

WASHER

SPACER - bolt, 6 mm thick

2шт.

12

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

1шт.

13

REF

INSTRUCTION

LOWER ACCESS COVERS - engine, see figure 9-14

1шт.

14

P926460

SUPPORT

BRACKET - support, center lower access cover

2шт.

15

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

4шт.

16

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

17

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

P7743812

COWLING

COVER ASSEMBLY - engine front, Include: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

COVER - engine front

1шт.

19

P3841451

FOAM

PAD - insulation, engine cover

2шт.

20

REF

INSTRUCTION

SEAL - cover, 55-3/4" long, cut from P1303155

1шт.

21

P41467

STOP

PLUG - cover, rubber

4шт.

22

P3036998

CLIP,ELECTRICAL

RETAINER -, Serial Range: pad-cover

14шт.

23

REF

INSTRUCTION

BATTERY - 12 volt, see figure 4-36 for batteries and mounting

1шт.
