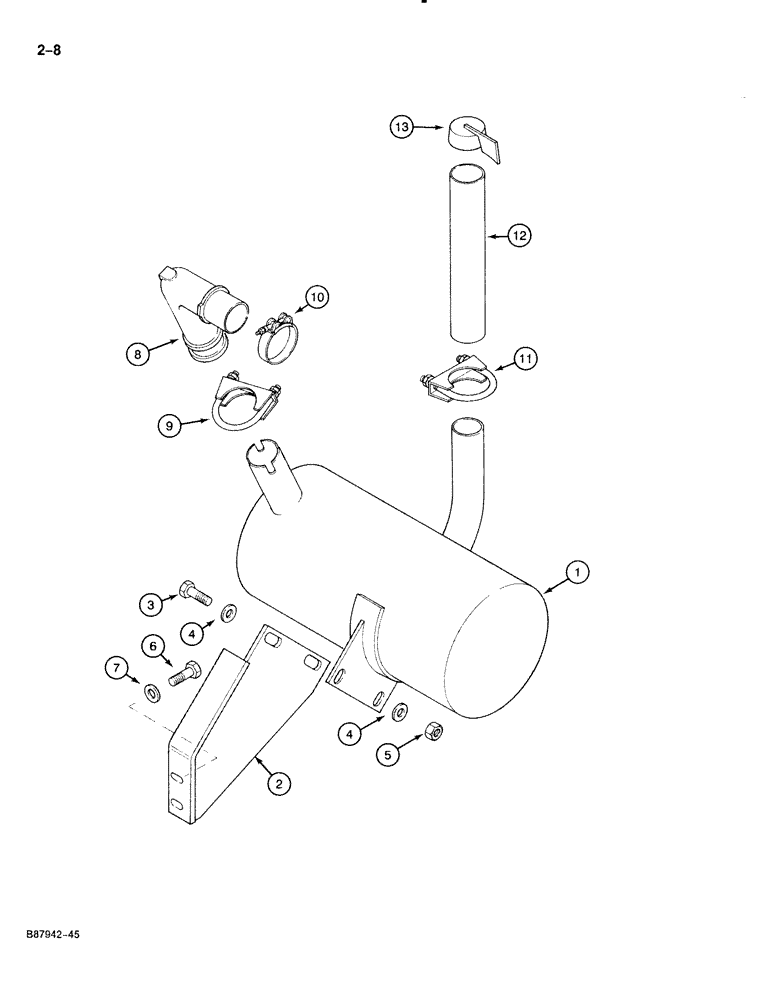

Запчасти Case 888 (2-008) - MUFFLER AND EXHAUST SYSTEM, P.I.N. FROM 74163 TO 74267 (02) - ENGINE

1

P3841443

MUFFLER

- engine exhaust

1шт.

2

P4327189

SUPPORT

BRACKET - mounting, Serial Range: muffler-engine

1шт.

3

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

2шт.

4

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

5

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

6

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

2шт.

7

P3528793

WASHER

SPACER - bolt, 8 mm thick

4шт.

8

P7946209

ADAPTER

-, Serial Range: muffler-turbocharger

1шт.

9

P3036956

CLAMP

-, Serial Range: muffler-pipe

1шт.

10

P3036950

CLAMP

-, Serial Range: adapter-turbocharger

1шт.

11

P3036956

CLAMP

-, Serial Range: muffler-pipe

1шт.

12

P3632325

TUBE

PIPE - muffler extension

1шт.

13

P2340486

COVER

CAP - muffler

1шт.
