Запчасти Case 888 (9-010) - ENGINE FRAME (09) - CHASSIS

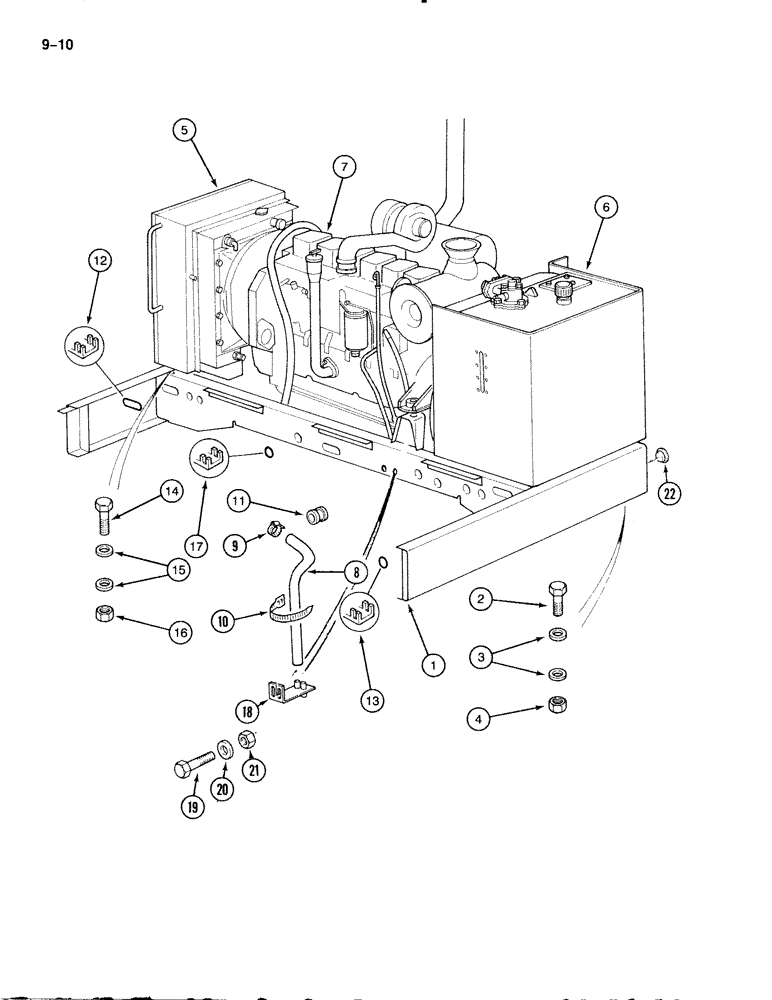

Схема запчастей Case 888 - (9-010) - ENGINE FRAME (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

P1055522

CHASSIS

FRAME - engine and hydraulic reservoir mounting (Replaces P55541)

1шт.

2

P33866

SCREW

BOLT - hex, 20 mm x 75 mm

8шт.

3

P4328747

WASHER

SPACER - bolt, 14 mm thick

16шт.

4

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

8шт.

5

REF

INSTRUCTION

SHROUD - radiator, see figures 9-18 and 9-20

1шт.

6

REF

INSTRUCTION

HYDRAULIC RESERVOIR ASSEMBLY - excavator, see Page 8-

1шт.

7

REF

INSTRUCTION

ENGINE ASSEMBLY - excavator, see figures 2-18 to 2-62 and figures, Serial Range: 3-14-3-22

1шт.

8

REF

INSTRUCTION

HOSE - 17-3/4" long, engine breather, cut from P31901

1шт.

9

P36998

COLLAR CLAMP

CLAMP - breather, Serial Range: hose-engine

1шт.

10

P51946

CLAMP

TIE STRAP - hose 10-2/8" long

1шт.

11

P41478

GROMMET

- frame, electrical harness

5шт.

12

REF

INSTRUCTION

PROTECTOR - edge, frame, 7-3/4" long, cut from P1303158

1шт.

13

REF

INSTRUCTION

PROTECTOR - edge, frame, 8-1/8" long, cut from P1303161

1шт.

14

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

4шт.

15

P4328747

WASHER

SPACER - bolt, 7 mm thick

8шт.

16

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

17

REF

INSTRUCTION

PROTECTOR - edge, frame, 4 inch long, cut from P1303158

1шт.

18

P7128222

SUPPORT

- hose, engine breather

1шт.

19

P933890

SCREW

BOLT - hex, 10 mm x 30 mm

2шт.

20

P3528795

WASHER

SPACER - bolt, 7 mm thick

2шт.

21

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

22

P3237456

PLASTIC PLUG

PLUG - plastic, engine frame

2шт.

Выбрано товаров: 22
