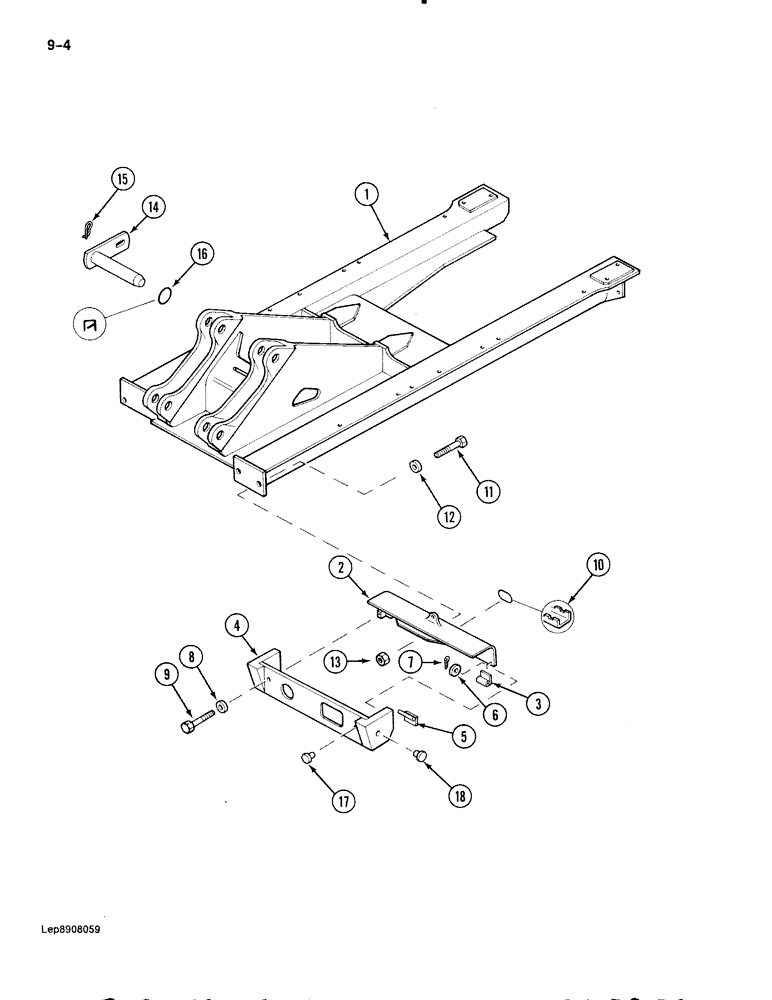

Запчасти Case 888 (9-004) - TURNTABLE FRAME, P.I.N. FROM 74163 TO XXXXX (09) - CHASSIS

1

P555510

FRAME

TURNTABLE - excavator

1шт.

2

P7543802

SUPPORT

- cab, front, Include: Ref. 3

1шт.

3

P36667

FENDER

BRACKET - support hinge

2шт.

4

P8043836

SUPPORT

PANEL - mounting, horn and lamp, Include: Ref. 5

1шт.

5

P36669

FIXED HINGE

HINGE - panel

2шт.

6

P34607

WASHER

- flat, 6 mm

2шт.

7

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm

2шт.

8

P3528795

WASHER

SPACER - bolt, 7 mm thick

2шт.

9

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, Hex, M10 x 25, 10.9, Full Thd

2шт.

10

REF

INSTRUCTION

GUARD - electrical harness through front cab support, 4-1/8 inch long, cut from P1303161

1шт.

11

P33866

SCREW

BOLT - hex, 20 mm x 75 mm

3шт.

12

P4328747

WASHER

SPACER - bolt, 14 mm thick

6шт.

13

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

3шт.

14

P50388

HEADED PIN

PIN - mounting, boom and boom, Serial Range: cylinder-turntable

4шт.

15

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

4шт.

16

P151309

SEAL

- mounting pin

8шт.

17

P3037441

PLASTIC PLUG

PLUG - plastic, panel, at front

1шт.

18

P3237454

PLASTIC PLUG

PLUG - plastic, support, at side

1шт.
