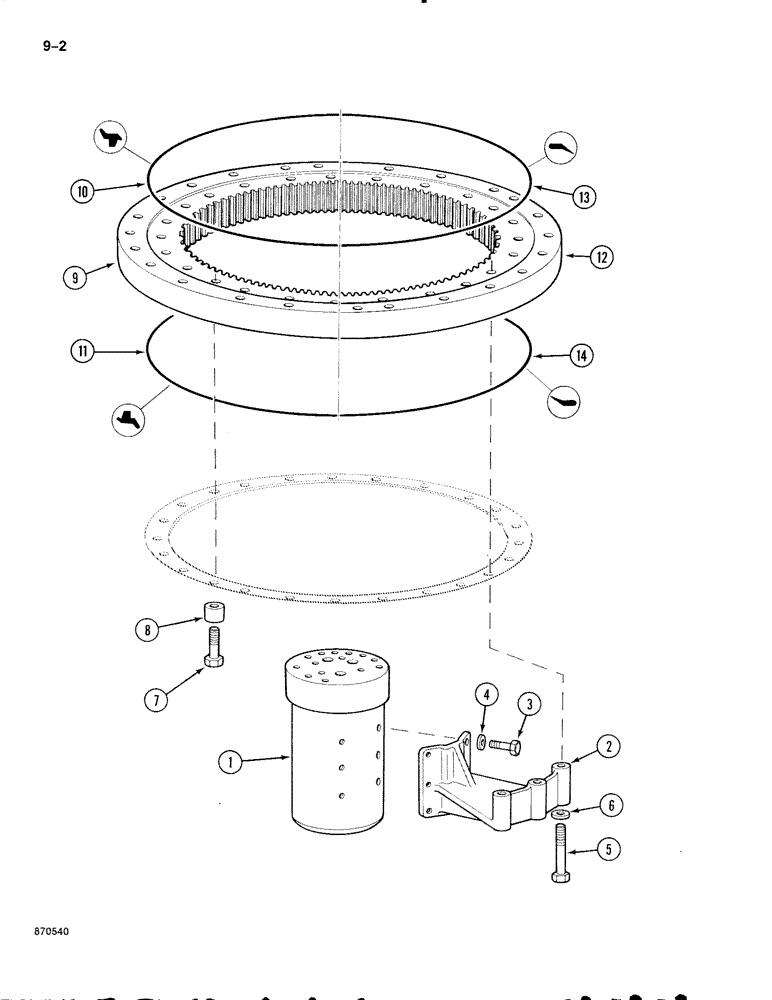

Запчасти Case 888 (9-002) - TURNTABLE BEARING (09) - CHASSIS

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, see Figure 8-62

1шт.

2

P2346172

SUPPORT

BRACKET - mounting, swivel, cast type, if used

1шт.

2

P55510

SUPPORT

BRACKET - mounting, swivel, fabricated type, if used

1шт.

3

P933819

SCREW

BOLT - hex, 12 mm x 55 mm

6шт.

4

P4328731

WASHER

SPACER - bolt, 24 m thick

6шт.

5

P1633867

SCREW

BOLT - hex, 220 mm x 180 mm, grade 10.9

3шт.

6

P5428789

WASHER

SPACER - bolt, 7 mm thick (Replaces P4628732)

3шт.

7

P1633877

SCREW

BOLT - hex, 20 mm x 100 mm, grade 10.9

21шт.

8

P4328747

WASHER

SPACER - bolt, 14 mm thick

21шт.

P739989

SLEWING RING

BEARING ASSEMBLY - turntable, if used (Order P2239914), Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - turntable

1шт.

10

P8046088

SEAL - turntable bearing, upper, cut to length as needed and use P1003576 adhesive on ends, if used

1шт.

11

P8046069

SEAL

- turntable bearing, lower, cut to length as needed use P1003576 adhesive on ends, if used

1шт.

P739989

SLEWING RING

BEARING ASSEMBLY - turntable, if used (Order P2239914), Include: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING - turntable

1шт.

13

P9646025

SEAL

- turntable bearing, upper, cut to length as needed and P1003576 adhesive on ends, if used

1шт.

14

P9646025

SEAL

- turntable bearing, lower, if used

1шт.
