Запчасти Case 888 (8-198) - TOOL CYLINDER (08) - HYDRAULICS

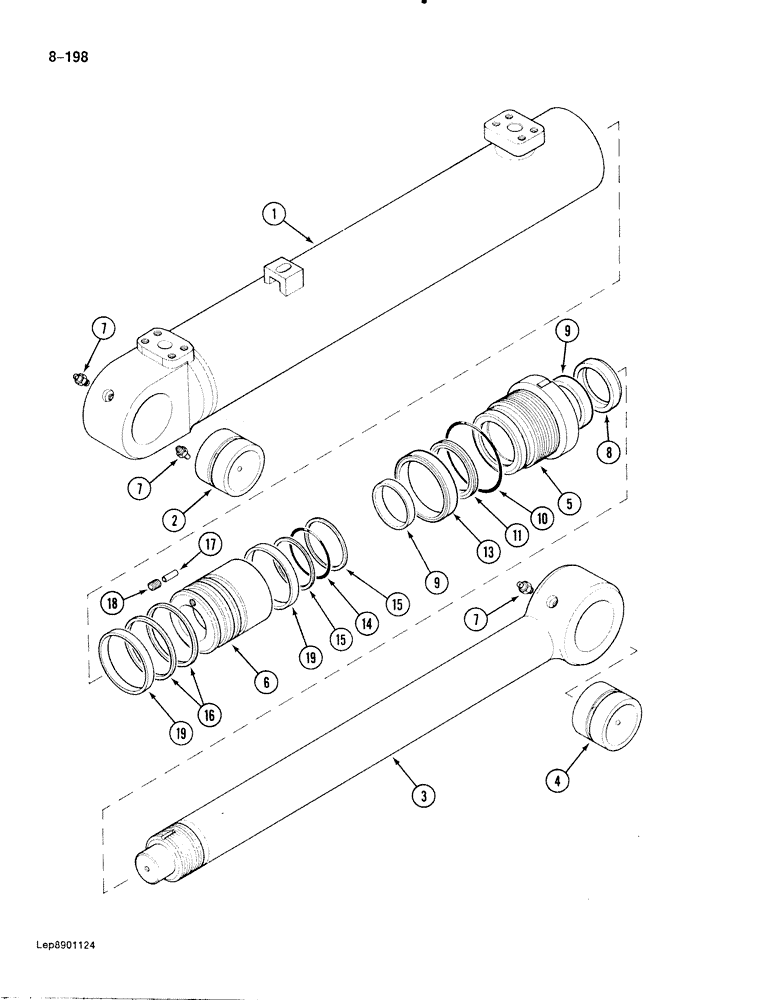

Схема запчастей Case 888 - (8-198) - TOOL CYLINDER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

P7946758

CYLINDER ASSY.

CYLINDER ASSEMBLY - tool, S.A.T. INFORMATIONS No. 50, Includes: Ref. 1 - 19

1шт.

P1552480

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1528673

BUSHING

- tube, bronze

1шт.

Ref #2A - P4028780 Steel Bushing

1шт.

P8349439

PISTON ROD

ROD ASSEMBLY - piston, S.A.T. INFORMATIONS No. 50, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1528673

BUSHING

- piston rod

1шт.

5

P4129183

CYLINDER END CAP

GLAND - cylinder

1шт.

6

P3829155

PISTON

- cylinder

1шт.

7

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

3шт.

8

P146064

WIPER SEAL

WIPER - piston rod

1шт.

P5649643

SEAL PACKAGE

KIT - seal (Replaces P5349624), Includes: Ref. 9 - 19

1шт.

9

P2045250

BAND

RING - wear

2шт.

10

P730449

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

- gland, large

1шт.

11

P1551252

SEAL

U-CUP SEAL - piston rod

1шт.

13

P730486

O-RING

SEAL - gland, (Replaces P4146043, P730492)

1шт.

14

P2030484

SEAL,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

O-RING - piston rod (Replaces P1930425)

1шт.

15

P9046019

BACK-UP RING

BACKUP RING - piston rod O-ring (Replaces P745388)

2шт.

16

P1451233

SPECIAL MAT. SEAL

SEAL - piston

2шт.

17

P827736

PIN

- locking

1шт.

18

P1432951

SCREW

SET SCREW - pin

1шт.

19

P1845281

BAND

RING - wear

2шт.

Выбрано товаров: 23
