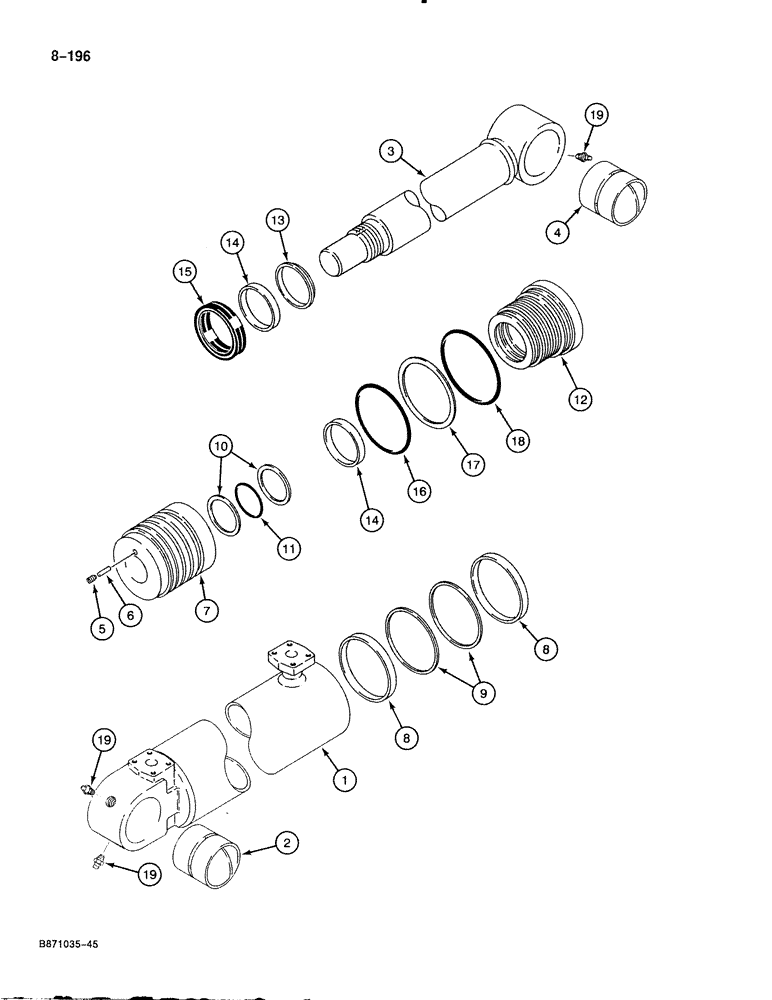

Запчасти Case 888 (8-196) - TOOL CYLINDER (08) - HYDRAULICS

P7646760

CYLINDER ASSY.

CYLINDER ASSEMBLY - tool, S.A.T. INFORMATIONS No. 48

1шт.

Check cylinder tube for letter "A", "B", or "C" following cylinder part number

1шт.

P1452434

JACK BODY

TUBE ASSEMBLY - cylinder, used with "A" letter identification,(Order P1552480), Include: Ref. 1 and 2

1шт.

Check cylinder tube for letter "A", "B", or "C" following cylinder part number

1шт.

P1752427

JACK BODY

TUBE ASSEMBLY - cylinder used with "B" letter identification,(Order P1552480), Include: Ref. 1 and 2

1шт.

Check cylinder tube for letter "A", "B", or "C" following cylinder part number

1шт.

P1552480

JACK BODY

TUBE ASSEMBLY - cylinder, used with "C" letter identification,, Include: Ref. 1 and 2

1шт.

Check cylinder tube for letter "A", "B", or "C" following cylinder part number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1528673

BUSHING

- tube, bronze

1шт.

2a

P4028780

BUSHING

steel

1шт.

P8349439

PISTON ROD

ROD ASSEMBLY - piston, Include: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1528673

BUSHING

- piston rod

1шт.

5

P1432951

SCREW

SET SCREW - pin

1шт.

Part of seal kit P/N P5349624

1шт.

6

P827736

PIN

- locking

1шт.

Part of seal kit P/N P5349624

1шт.

7

P3829155

PISTON

- cylinder

1шт.

8

P2045250

BAND

RING - wear

2шт.

Part of seal kit P/N P5349624

1шт.

9

P1451233

SPECIAL MAT. SEAL

SEAL - piston

2шт.

Part of seal kit P/N P5349624

1шт.

10

P745388

BACK-UP RING

BACKUP RING - piston rod O-ring (Order P9046019)

2шт.

Part of seal kit P/N P5349624

1шт.

11

P1930425

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- piston rod (Order P2030484)

1шт.

Part of seal kit P/N P5349624

1шт.

12

P3829150

CYLINDER END CAP

GLAND - cylinder

1шт.

13

P146064

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N P5349624

1шт.

14

P1845281

BAND

RING - wear

2шт.

Part of seal kit P/N P5349624

1шт.

15

P1551252

SEAL

U-CUP SEAL - piston rod

1шт.

Part of seal kit P/N P5349624

1шт.

16

P730492

O-RING

- gland, small (Order P2030486)

1шт.

Part of seal kit P/N P5349624

1шт.

17

P4146043

SEAL

BACKUP RING - gland O-ring (Order P2030486)

1шт.

Part of seal kit P/N P5349624

1шт.

18

P730449

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

- gland, large

1шт.

Part of seal kit P/N P5349624

1шт.

19

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

3шт.

P5349624

KIT

- seal, Includes: Ref. 5, 6, 8 thru 11and 13 thru 18 (Order P5649643)

1шт.
