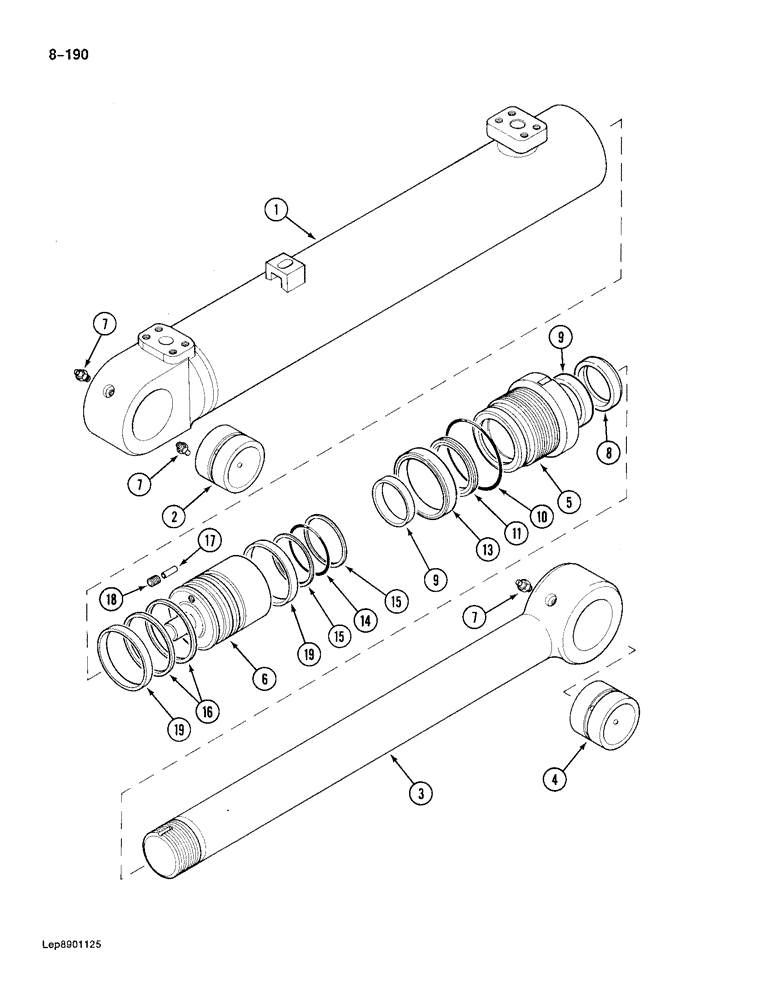

Запчасти Case 888 (8-190) - ARM CYLINDER (08) - HYDRAULICS

P8346703

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm (Replaces P7646759, P7946757 and P7946792), Includes: Ref. 1 - 19

1шт.

P1452461

JACK BODY

TUBE ASSEMBLY - cylinder, Include: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1928655

BUSHING

- tube

1шт.

P8849405

PISTON ROD

ROD ASSEMBLY - piston (Replaces P8649477), Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1928655

BUSHING

- piston rod

1шт.

5

P4129184

CYLINDER END CAP

GLAND - cylinder

1шт.

6

P1829957

PISTON

- cylinder

1шт.

7

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

3шт.

P5649642

SEAL PACKAGE

KIT - seal, Include: Ref. 8 - 19

1шт.

8

P2046009

WIPER SEAL

WIPER - piston rod

1шт.

9

P1845280

BAND

RING - wear

2шт.

10

P230410

O-RING

- gland, large

1шт.

11

P1751217

SEAL

U-CUP SEAL - piston rod

1шт.

13

P2030487

SEAL

- gland

1шт.

14

P2030485

O-RING

- piston rod

1шт.

15

P9046020

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

16

P446048

SPECIAL MAT. SEAL

SEAL - piston

2шт.

17

P827736

PIN

- locking

1шт.

18

P1432952

SCREW

SET SCREW - pin

1шт.

19

P1845282

BAND

RING - wear

2шт.
