Запчасти Case 888 (8-184) - ARM CYLINDER, IF USED (08) - HYDRAULICS

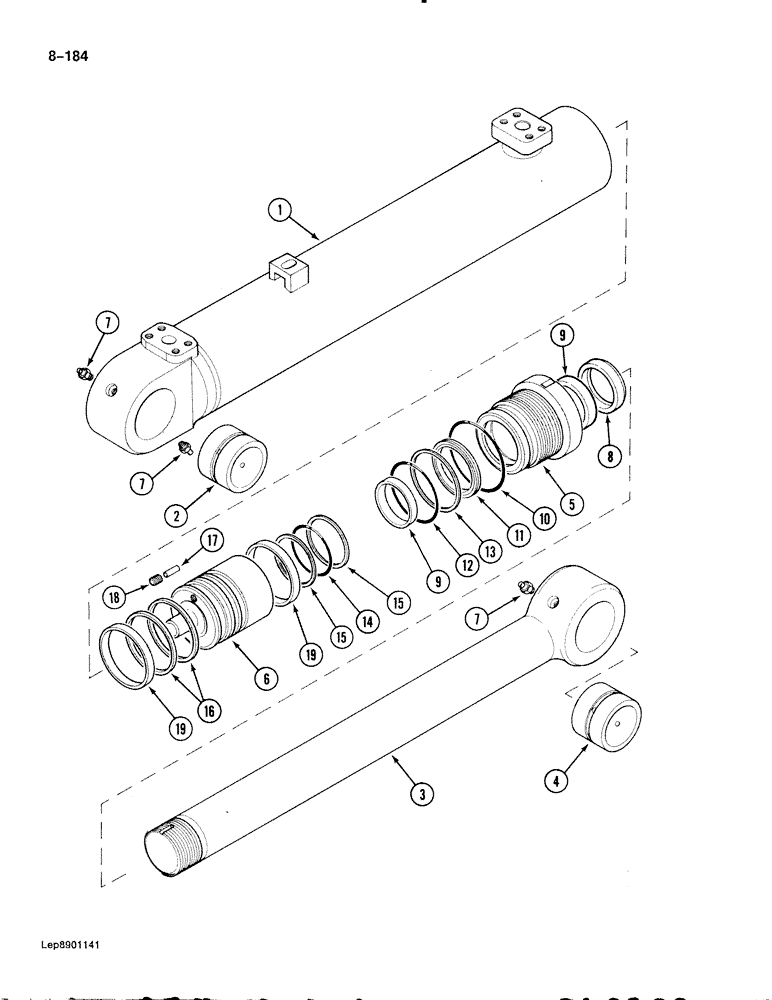

Схема запчастей Case 888 - (8-184) - ARM CYLINDER, IF USED (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

P7646759

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm (Order P8346703) (See figure 8-190), Includes: Ref. 1 - 19

1шт.

P1452461

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1928655

BUSHING

- tube

1шт.

P8349459

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1928655

BUSHING

- piston rod

1шт.

5

P3829164

CYLINDER END CAP

GLAND - cylinder (Order P4129184)

1шт.

6

P4649518

PISTON

- cylinder

1шт.

7

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

3шт.

P5349633

SEAL PACKAGE

KIT - seal (Order P5649642), Includes: Ref. 8 - 19

1шт.

8

P2046009

WIPER SEAL

WIPER - piston rod

1шт.

9

P1845280

BAND

RING - wear

2шт.

10

P230410

O-RING

- gland, large

1шт.

11

P1751217

SEAL

U-CUP SEAL - piston rod

1шт.

12

P1130469

O-RING

SEAL - gland (Order P2030487)

1шт.

13

P6846097

BACK-UP RING

BACKUP RING - gland O-ring (Order P2030487)

1шт.

14

P130433

O-RING

- piston rod

1шт.

15

P745360

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

16

P446048

SPECIAL MAT. SEAL

SEAL - piston

2шт.

17

P827736

PIN

- locking

1шт.

18

P1432952

SCREW

SET SCREW - pin

1шт.

19

P1845282

BAND

RING - wear

2шт.

Выбрано товаров: 23
