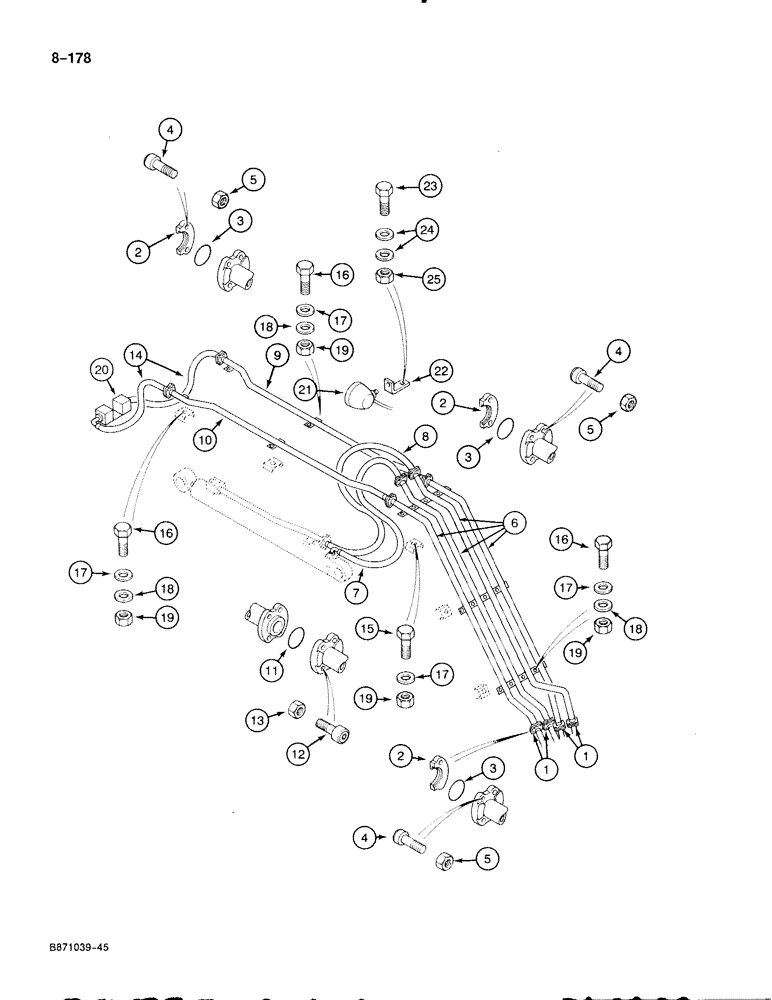

Запчасти Case 888 (8-178) - ARM AND TOOL CYLINDER CIRCUIT, TUBES AT BOOM (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from arm and tool sections of attachment control valve, see figure 8-68

1шт.

2

P4024266

CLAMP

SPLIT FLANGE - hose flange

16шт.

3

P1130483

O-RING

- hose flange

8шт.

4

P732994

SCREW

BOLT - hex socket, 10 mm x 50 mm, grade 10.9

32шт.

5

86500689

NUT,M10 x 1.5, Cl 10

32шт.

6

P3450105

HYD TUBE,1365, 239" L

TUBE ASSEMBLY - to arm and tool cylinders (Order P3950165, P5431935, and P5931952)

1шт.

7

P5931914

HOSE

- 19-3/4" long, to base end of arm cylinder, if used

1шт.

7

P6531961

HOSE

- 31-1/2" long, to base end of arm cylinder, if used (Replaces P5431935)

1шт.

8

P5931992

HOSE

- 24-13/16" long, to rod end of arm cylinder, if used

1шт.

8

P5931952

HOSE

- 39-3/8" long, to rod end of arm cylinder, if used (Replaces P5431952)

1шт.

9

P3450110

PIPE

TUBE - right-hand side of arm, to tool cylinder

1шт.

10

P3450109

PIPE

TUBE - left-hand side of arm, to tool cylinder

1шт.

11

P1130483

O-RING

- hose flange

2шт.

12

P732994

SCREW

BOLT - hex socket, 10 mm x 50 mm, grade 10.9

8шт.

13

86500689

NUT,M10 x 1.5, Cl 10

8шт.

14

P5431998

HOSE

- 49-3/16" long, to tool attachement block

2шт.

15

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

2шт.

16

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

11шт.

17

P3528795

WASHER

SPACER - bolt, 7 mm thick

16шт.

18

P1245227

WASHER

- flat, 10 mm

11шт.

19

P1634563

SAFETY NUT

NUT - hex, self-locking, 10 mm

12шт.

20

REF

INSTRUCTION

BLOCK - manifold, to tool cylinder, see figue 8-194

1шт.

21

REF

INSTRUCTION

LAMP - boom cylinder, see figure 4-42

1шт.

22

P4825649

SUPPORT

BRACKET - lamp mounting

1шт.

23

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

1шт.

24

P4328796

WASHER

SPACER - bolt, 7 mm thick

2шт.

25

86500689

NUT,M10 x 1.5, Cl 10

1шт.
