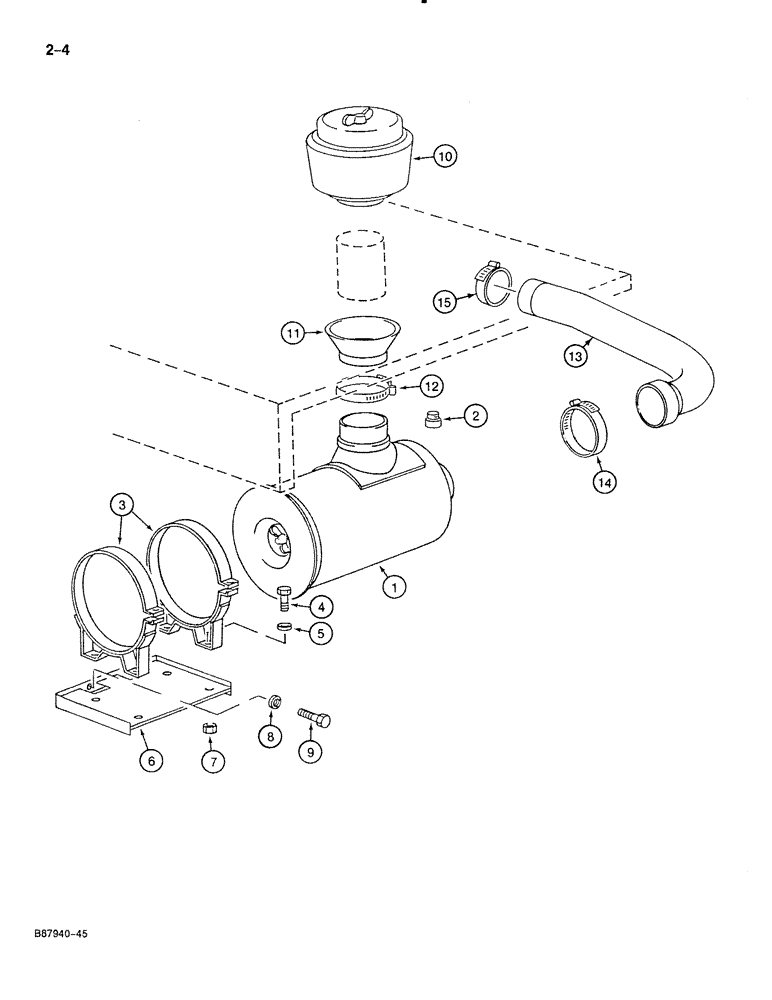

Запчасти Case 888 (2-004) - AIR INTAKE PARTS (02) - ENGINE

1

REF

INSTRUCTION

AIR CLEANER ASSEMBLY - engine, see figure 2-6

1шт.

2

P2141684

INDICATOR

SENDER - air restriction indicator

1шт.

3

P136978

BAND - air cleaner

2шт.

4

P933890

SCREW

BOLT - hex, 10 mm x 30 mm, full thread

4шт.

5

P3528795

WASHER

SPACER - bolt, 7 mm thick

1шт.

6

P6828238

SUPPORT

BRACKET - air cleaner mounting

1шт.

7

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

8

P3528793

WASHER

SPACER - bolt, 8 mm thick

2шт.

9

P33873

SCREW

BOLT - hex, 12 mm x 25 mm

2шт.

10

P1750596

PRECLEANER

- air cleaner

1шт.

11

P8846036

SEAL

- air, Serial Range: cleaner-hood

1шт.

12

P1236903

CLAMP

- air cleaner to seal (Replaces P136901)

1шт.

13

P6731959

LARGE HOSE

HOSE - air, Serial Range: cleaner-turbocharger

1шт.

14

P136901

CLAMP

- air, Serial Range: cleaner-seal

1шт.

15

P1236903

CLAMP

-, Serial Range: hose-turbocharger

1шт.
