Запчасти Case 888 (8-166) - LOAD HOLDING VALVE, WITH BOOM CYLINDERS (08) - HYDRAULICS

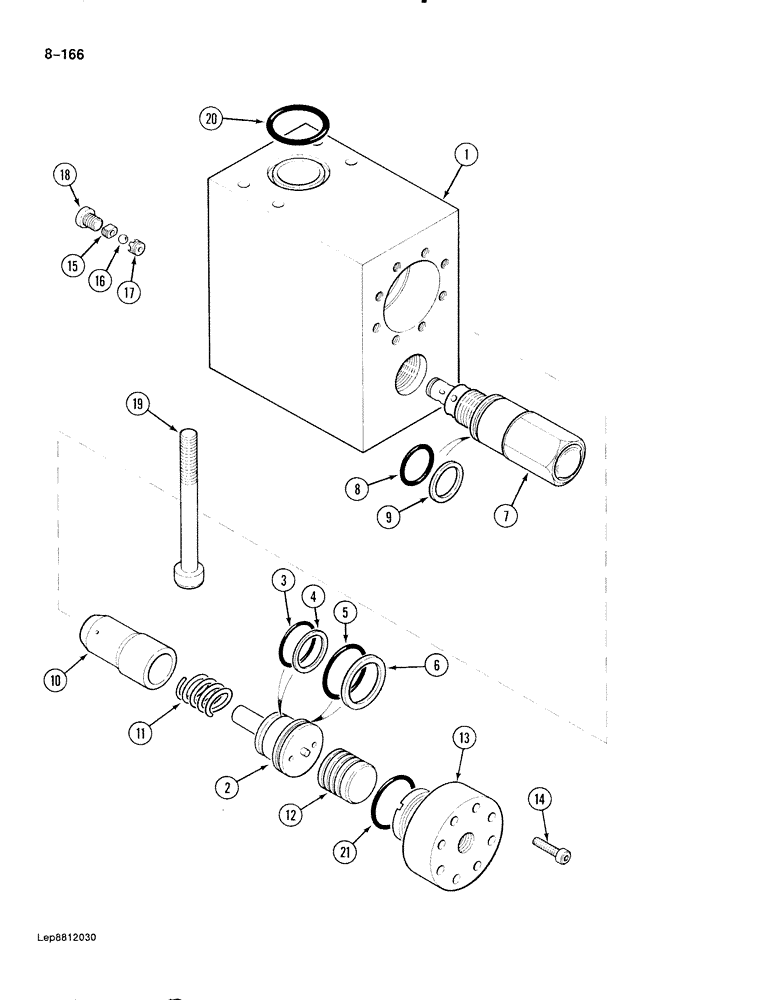

Схема запчастей Case 888 - (8-166) - LOAD HOLDING VALVE, WITH BOOM CYLINDERS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

P4343313

SHIN

VALVE ASSEMBLY - load holding valve, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - load holding valve

1шт.

P8346271

SPOOL

POPPET ASSEMBLY - load holding valve, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

3

P1230443

O-RING

- poppet, small

1шт.

4

P1746045

BACK-UP RING

BACKUP RING - O-ring, small

1шт.

5

P30405

O-RING

- poppet, large

1шт.

6

P945222

BACK-UP RING

BACKUP RING - O-ring, large

1шт.

P4043393

PRESSURE LIMITER

VALVE ASSEMBLY - pressure limiter, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - pressure limiter

1шт.

8

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- pressure limiter

1шт.

9

P1245232

RING

BACKUP RING - pressure limiter

1шт.

10

P1729852

VALVE POPPET

SEAT - valve spring

1шт.

11

P1538186

SPRING

- poppet

1шт.

12

P6027898

PISTON

- valve

1шт.

13

P150252

CAP

- valve

1шт.

14

P1032901

SCREW

BOLT - hex socket, 5 mm x 25 mm, full thread

8шт.

15

P4229101

STOP

- ball

1шт.

16

P31001

BALL

- check, valve

1шт.

17

P4229102

SEAT

- ball

1шт.

18

P2537448

PLUG

- valve body

1шт.

P2230441

SEAL

SEAT - plug

1шт.

19

P1032924

SCREW

BOLT - hex socket, 10 mm x 110 mm

4шт.

20

P1130483

O-RING

- valve, Serial Range: body-manifold

1шт.

21

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

-, Serial Range: cap-body

1шт.

Выбрано товаров: 25
