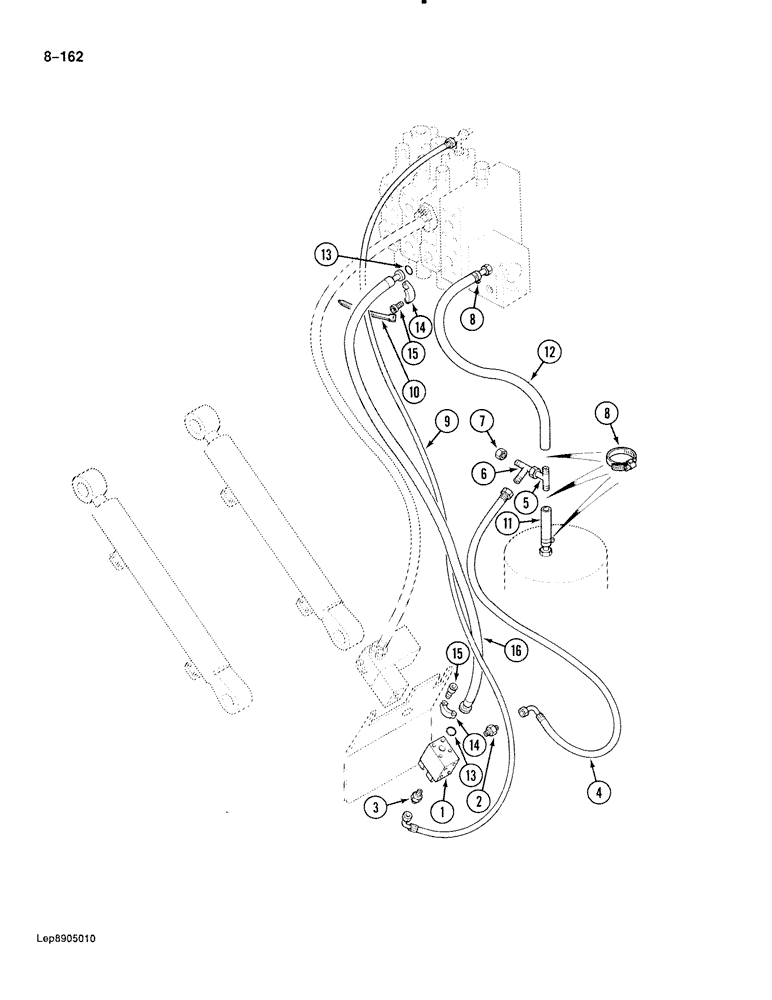

Запчасти Case 888 (8-162) - BOOM CYLINDER CIRCUIT, WITH LOAD HOLDING VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - load holding valve, see figure 8-166

1шт.

2

P3237533

UNION

ADAPTER - straight

1шт.

P1145268

SEAL

- adapter

1шт.

3

P3237530

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

4

P6531978

HOSE

- 19-3/4" long, return circuit

1шт.

5

P3450145

PIPE

- hyd swivel hose to attachment block hose

1шт.

6

P937277

TEE

- street

1шт.

7

P2537409

BLANK-OFF PLUG

PLUG - tee

1шт.

8

P36998

COLLAR CLAMP

CLAMP - hose, small

4шт.

9

P5431954

HOSE

- 55-1/8" long, control circuit

1шт.

10

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

1шт.

11

REF

INSTRUCTION

HOSE - hyd swivel to tee, 7-15/16" long, cut from P1103635

1шт.

12

REF

INSTRUCTION

HOSE - tee to attachment control valve, 23-5/8" long, cut from P1103635

1шт.

13

P1130483

O-RING

- hose flange

2шт.

14

P4024266

CLAMP

SPLIT FLANGE - hose flange

4шт.

15

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

16

P5431993

HOSE

- 31-1/2" long, attachment control valve to load holding valve

1шт.
