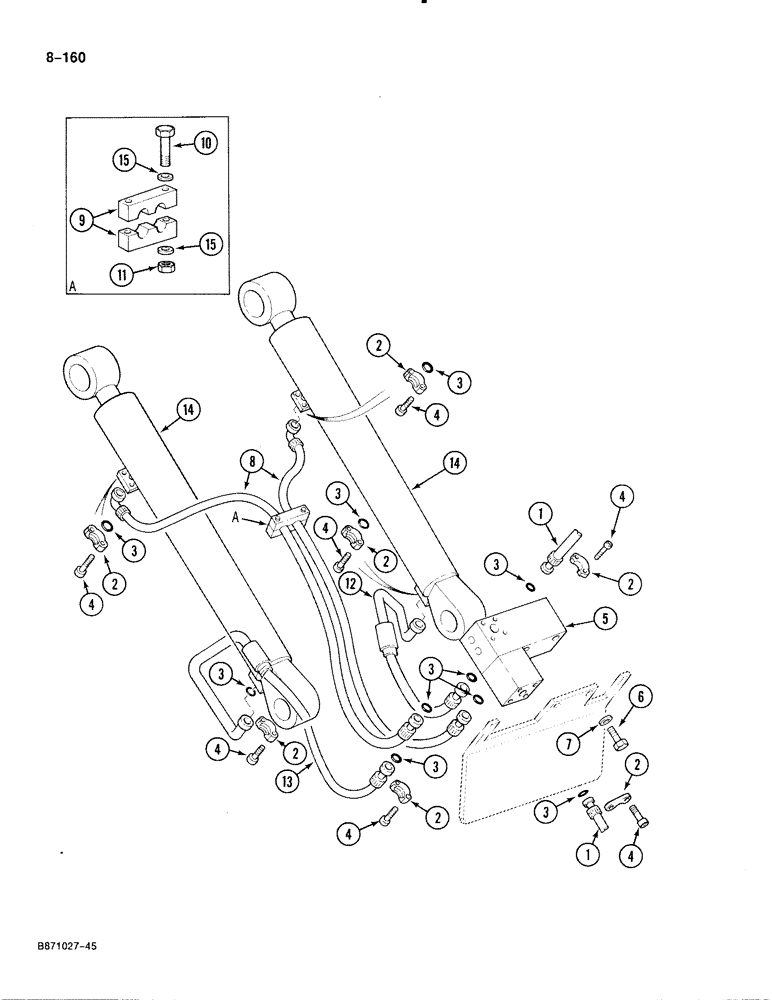

Запчасти Case 888 (8-160) - BOOM CYLINDER CIRCUIT, HOSES AT CYLINDER - ROD END, P.I.N. 74290 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from boom section of attachment control valve, see figure 8-66

2шт.

2

P4024266

CLAMP

SPLIT FLANGE - hose flange

20шт.

3

P1130483

O-RING

- hose flange

10шт.

4

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

40шт.

5

REF

INSTRUCTION

BLOCK ASSEMBLY - hose manifold, see figure 8-164

1шт.

6

P833894

SCREW

BOLT - hex, 20 mm x 60 mm

2шт.

7

P4328747

WASHER

SPACER - bolt, 14 mm thick

2шт.

8

P5931999

HOSE

- 70-7/8" long, manifold block to rod end of boom cylinder

2шт.

9

P4620379

SHIN

CLAMP - hose, two hose

2шт.

10

P933808

SCREW

BOLT - hex, 10 mm x 90 mm

2шт.

11

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

12

P6631922

HOSE

- manifold block to base end of right-hand boom cylinder

1шт.

13

P6631923

HOSE

- manifold block to base end of left-hand boom cylinder

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom see figures, Serial Range: 8-168-8-176

2шт.

15

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.
