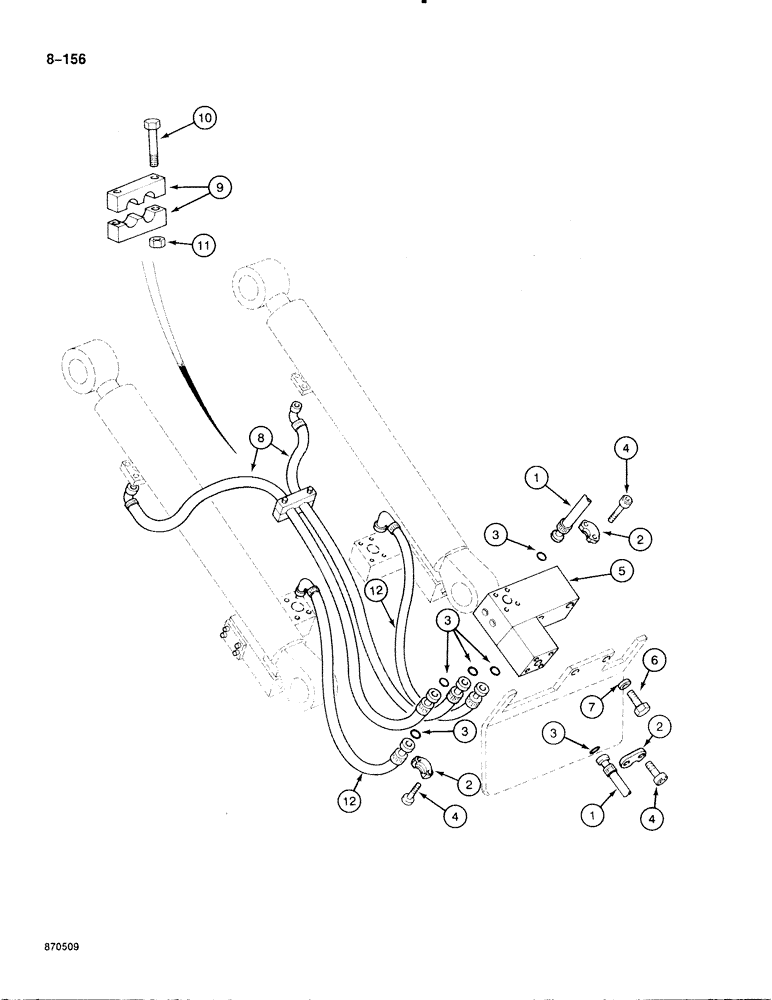

Запчасти Case 888 (8-156) - BOOM CYLINDER CIRCUIT, HOSES AT CYLINDER, P.I.N. FROM 74163 TO 74289 (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from boom section of attachment control valve, see figure 8-64

1шт.

2

P4024266

CLAMP

SPLIT FLANGE - hose flange

12шт.

3

P1130483

O-RING

- hose flange

6шт.

4

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

24шт.

5

REF

INSTRUCTION

BLOCK ASSEMBLY - hose manifold, see figure 8-164

1шт.

6

P833894

SCREW

BOLT - hex, 20 mm x 60 mm

2шт.

7

P4328747

WASHER

SPACER - bolt

2шт.

8

P5931999

HOSE

- 70-7/8" long, manifold block to rod end of boom cylinder

2шт.

9

P4620379

SHIN

CLAMP - hose, two hose

2шт.

10

P33833

SCREW

BOLT - hex, 10 mm x 75 mm

2шт.

11

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

12

REF

INSTRUCTION

HOSE - manifold block to base end of boom cylinder, see figure 8-158

2шт.
