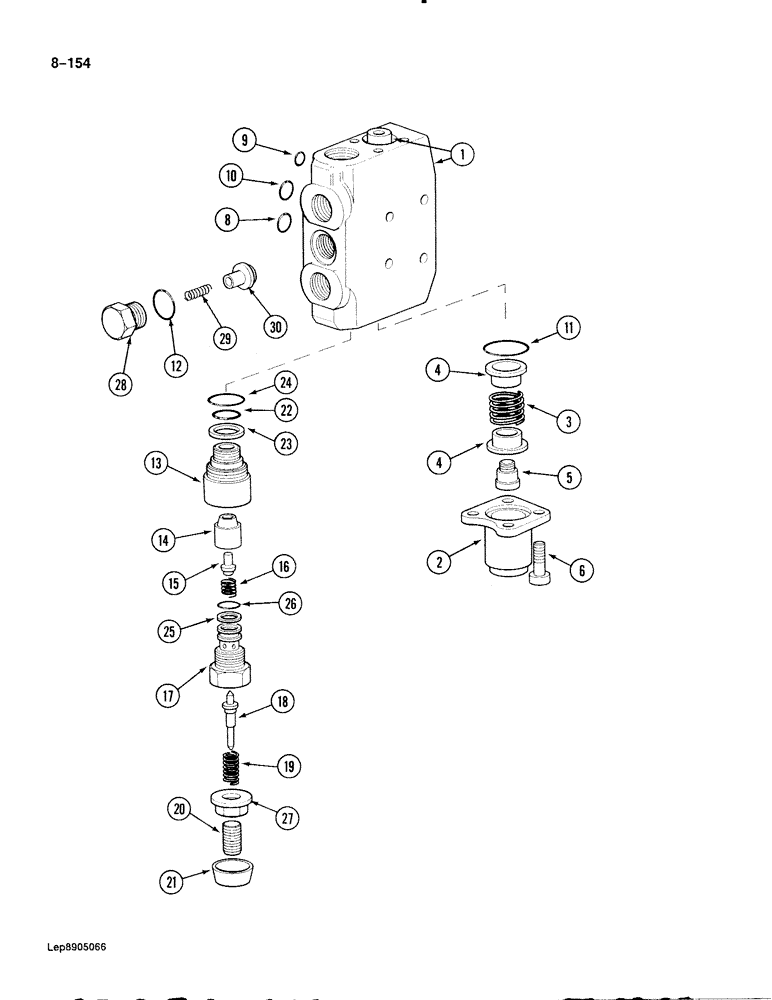

Запчасти Case 888 (8-154) - CONTROL VALVE FOR OPTIONS, FOR WRIST-O-TWIST/ROTATOR, P.I.N. FROM XXXXX AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
P3343676
VALVE, CONTROL
CONTROL VALVE ASSEMBLY - options, Includes: Ref. 1 - 30
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - control valve
1шт.
2
P3143628
CASE
COVER - spool
2шт.
3
P38297
SPRING
- spool
2шт.
4
P7646237
CUPEL
SEAT - spring
4шт.
5
P3333018
SCREW
BOLT - special, spool end
2шт.
6
P3333019
SCREW
BOLT - hex socket, spool cover
8шт.
P5949603
SEAL PACKAGE
KIT - repair, seal, Include: Ref. 8 - 12
1шт.
8
NSS
NOT SOLD SEPARAT
O-RING - section seal
1шт.
9
NSS
NOT SOLD SEPARAT
O-RING - section seal
1шт.
10
NSS
NOT SOLD SEPARAT
O-RING - section seal
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING - cover seal
2шт.
12
NSS
NOT SOLD SEPARAT
O-RING - load check seal
1шт.
P3143630
CARTRIDGE
VALVE ASSEMBLY - relief valve, Includes: Ref. 13 - 27
1шт.
13
NSS
NOT SOLD SEPARAT
HOUSING - relief valve
1шт.
14
NSS
NOT SOLD SEPARAT
PISTON - relief valve
1шт.
15
NSS
NOT SOLD SEPARAT
POPPET - relief valve
1шт.
16
P1038221
SPRING
- poppet
1шт.
17
NSS
NOT SOLD SEPARAT
BODY - plunger
1шт.
18
NSS
NOT SOLD SEPARAT
PLUNGER - relief valve
1шт.
19
P1038223
SPRING
- plunger
1шт.
20
NSS
NOT SOLD SEPARAT
SCREW - adjusting, relief valve
1шт.
21
NSS
NOT SOLD SEPARAT
COVER - adjusting screw
1шт.
P5449633
SEAL PACKAGE
KIT - repair, seal, Include: Ref. 22 - 24
1шт.
22
NSS
NOT SOLD SEPARAT
O-RING - housing, small
1шт.
23
NSS
NOT SOLD SEPARAT
BACKUP RING - O-ring
1шт.
24
NSS
NOT SOLD SEPARAT
O-RING - housing, large
1шт.
25
NSS
NOT SOLD SEPARAT
BACKUP RING - body O-ring
1шт.
26
NSS
NOT SOLD SEPARAT
O-RING - body
1шт.
27
NSS
NOT SOLD SEPARAT
LOCK NUT - adjusting screw
1шт.
P3743368
VALVE POPPET
LOAD CHECK ASSEMBLY - control valve for options, Includes: Ref. 28 - 30
1шт.
28
P3037473
PLUG
- lock check valve
1шт.
29
P38283
SPRING
- poppet
1шт.
30
P2643624
VALVE POPPET
POPPET - load check
1шт.
Выбрано товаров: 34
