Запчасти Case 888 (8-152) - CONTROL VALVE FOR OPTIONS, FOR WRIST-O-TWIST/ROTATOR, P.I.N. FROM 74163 TO XXXXX (08) - HYDRAULICS

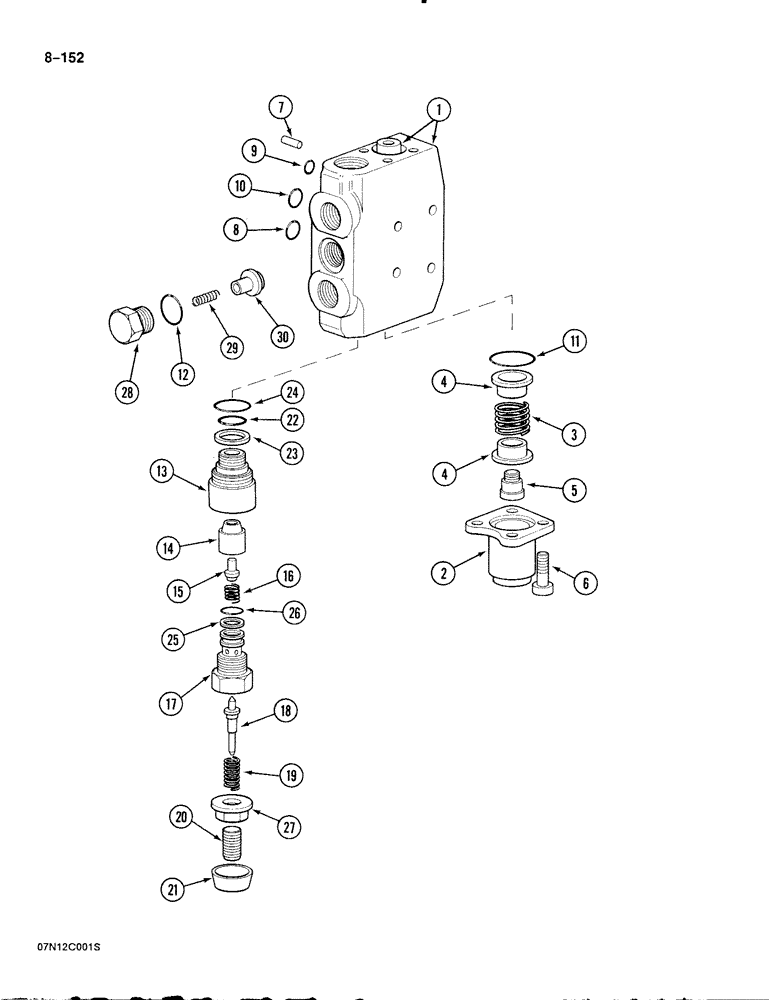

Схема запчастей Case 888 - (8-152) - CONTROL VALVE FOR OPTIONS, FOR WRIST-O-TWIST/ROTATOR, P.I.N. FROM 74163 TO XXXXX (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

P3143627

ELEMENT

CONTROL VALVE ASSEMBLY - options, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

P3143628

CASE

COVER - spool

2шт.

3

P38297

SPRING

- spool

2шт.

4

P7646237

CUPEL

SEAT - spring

4шт.

5

P3333018

SCREW

BOLT - special, spool end

2шт.

6

P3333019

SCREW

BOLT - hex socket, spool cover

8шт.

P5449632

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 7 - 12

1шт.

7

P3227391

NEEDLE

PIN - body to section, if used

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - section seal

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - section seal

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - section seal

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - cover seal

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING - load check seal

1шт.

P3143630

CARTRIDGE

VALVE ASSEMBLY - relief valve, Includes: Ref. 13 - 27

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

16

P1038221

SPRING

- poppet

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - plunger

1шт.

18

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

19

P1038223

SPRING

- plunger

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - adjusting, relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

COVER - adjusting screw

1шт.

P5449633

SEAL PACKAGE

KIT - repair, seal, Include: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - housing, small

1шт.

23

NSS

NOT SOLD SEPARAT

BACKUP RING - O-ring

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - housing, large

1шт.

25

NSS

NOT SOLD SEPARAT

BACKUP RING - body O-ring

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - body

1шт.

27

NSS

NOT SOLD SEPARAT

LOCKNUT - adjusting screw

1шт.

P3743368

VALVE POPPET

LOAD CHECK ASSEMBLY - control valve for options, Includes: Ref. 28 - 30

1шт.

28

P3037473

PLUG

- lock check valve

1шт.

29

P38283

SPRING

- poppet

1шт.

30

P2643624

VALVE POPPET

POPPET - load check

1шт.

Выбрано товаров: 35
