Запчасти Case 888 (8-150) - CONTROL VALVE FOR OPTIONS, FOR WRIST-O-TWIST/ROTATOR, P.I.N. FROM XXXXX AND AFTER (08) - HYDRAULICS

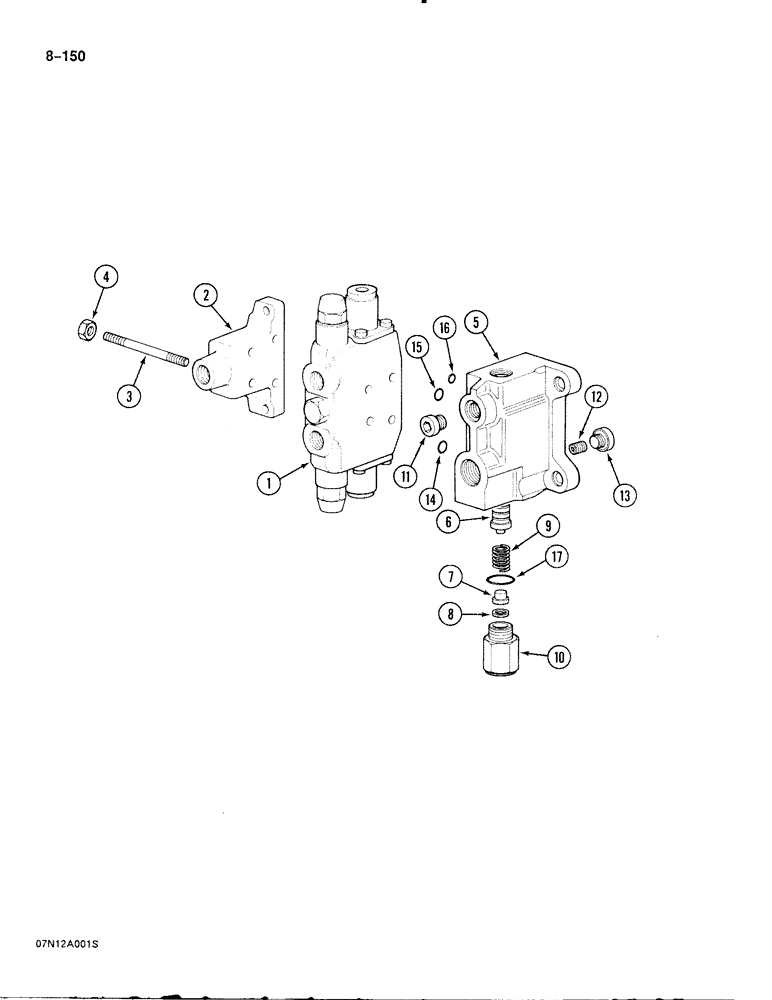

Схема запчастей Case 888 - (8-150) - CONTROL VALVE FOR OPTIONS, FOR WRIST-O-TWIST/ROTATOR, P.I.N. FROM XXXXX AND AFTER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - options, see figure 8-154

1шт.

2

P3143629

VALVE, CONTROL

SECTION ASSEMBLY - outlet, control valve for options

1шт.

3

P144993

TRUSS ROD

STUD - control valve

4шт.

4

P2434529

NUT

- hex, self-locking, 8 mm

4шт.

P3143691

VALVE, CONTROL

SECTION ASSEMBLY - inlet, control valve for options, Includes: Ref. 5 - 17

1шт.

5

NSS

NOT SOLD SEPARAT

INLET SECTION - option control valve

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - option control valve

1шт.

P5949650

SPARE PART SET

KIT - repair, seat, Include: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

8

P5449631

KIT

SHIM SET - spring tension

1шт.

9

P38296

SPRING

- spool

1шт.

10

P2340466

CAP

COVER - valve spool

2шт.

11

P2537447

PLUG

- valve body

1шт.

P7046042

SEAL

- plug, not shown

1шт.

12

P3743201

JET

ORIFICE - valve body

1шт.

P5949604

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 13 - 17

1шт.

13

P2537448

PLUG

- orifice

1шт.

P2230441

SEAL

- plug

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - section seal

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - section seal

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - section seal

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - valve body to end cover

1шт.

Выбрано товаров: 22
