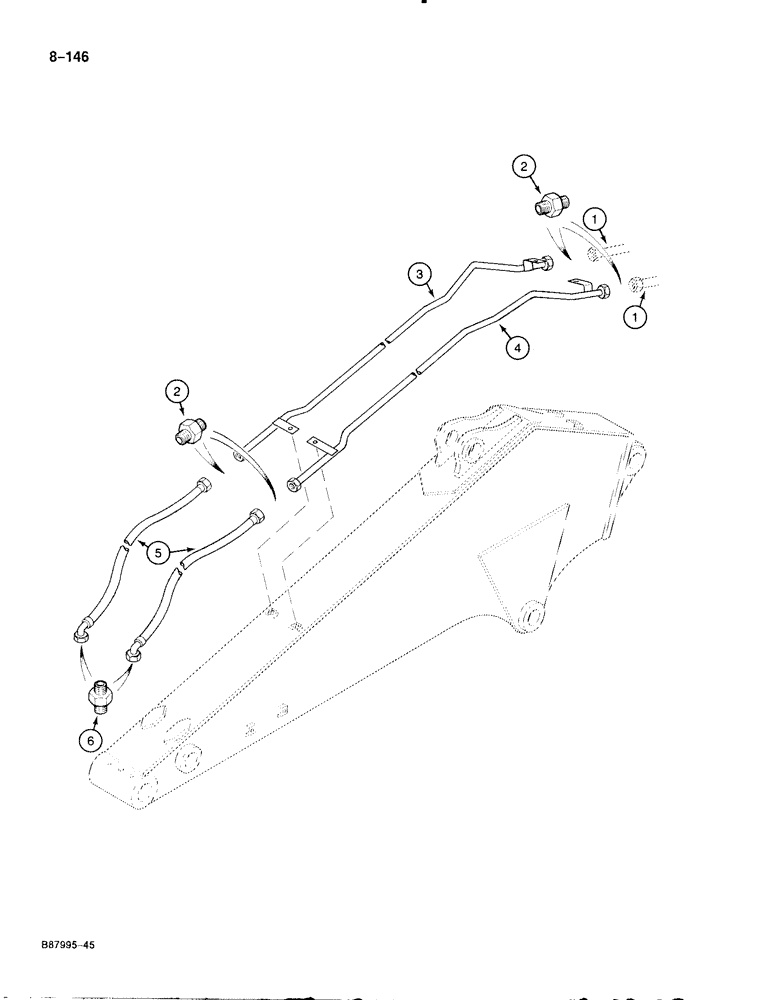

Запчасти Case 888 (8-146) - HYDRAULIC CIRCUIT FOR OPTIONS - 2.70 M ARM, TUBES AT ARM, FOR WRIST-O-TWIST/ROTATOR (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from option tubes at boom, see figure 8-142

2шт.

2

P3237537

UNION

ADAPTER - straight

4шт.

3

P3750123

PIPE

TUBE - for options, right-hand side of arm (Replaces P3550156)

1шт.

4

P3750124

PIPE

TUBE - for options, left-hand side of arm (Replaces P3550157)

1шт.

5

P3731944

HOSE

- 98" - 1/2" long, to optional attachment (Replaces P3731944)

2шт.

6

P4037518

UNION

ADAPTER - straight

2шт.
