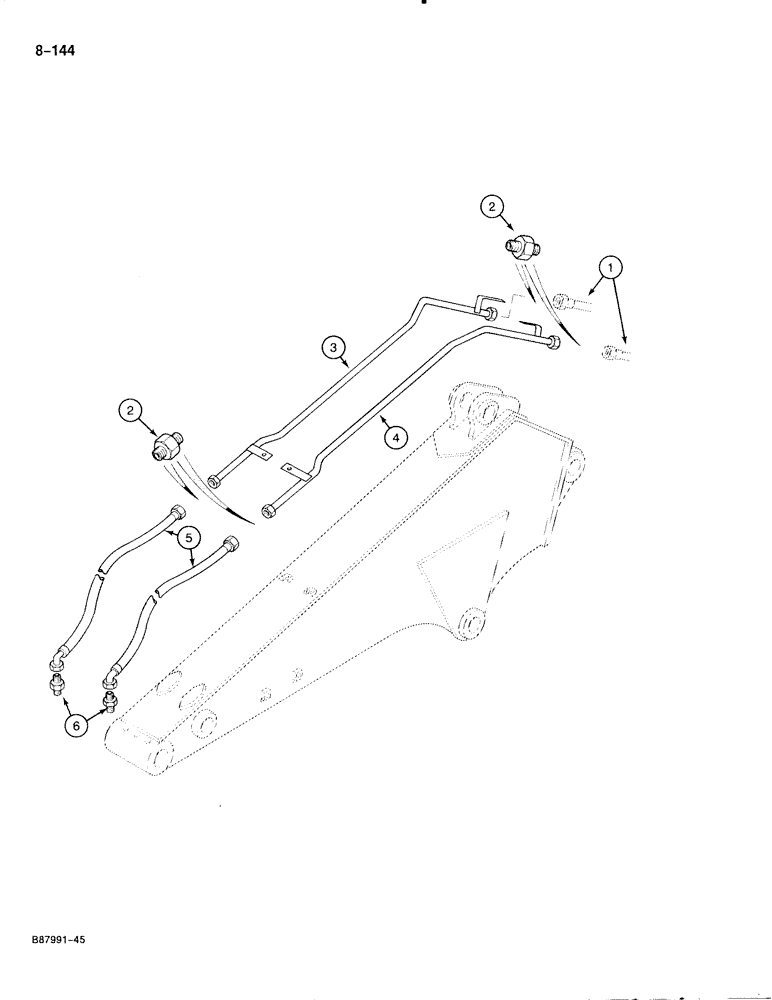

Запчасти Case 888 (8-144) - HYDRAULIC CIRCUIT FOR OPTIONS - 2.10 M ARM, TUBES AT ARM, FOR WRIST-O-TWIST/ROTATOR (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from option tubes at bottom, see figure 8-142

2шт.

2

P3237537

UNION

ADAPTER -straight

4шт.

3

P3750126

PIPE

TUBE - for options, right-hand side of arm (Replaces P3550153)

1шт.

4

P3750125

PIPE

TUBE - for options, left-hand side of arm (Replaces P3550154)

1шт.

5

P3731944

HOSE

- 98-1/2" long, to optional attachement (Replaces P3731944)

2шт.

6

P4037518

UNION

ADAPTER - straight

2шт.
